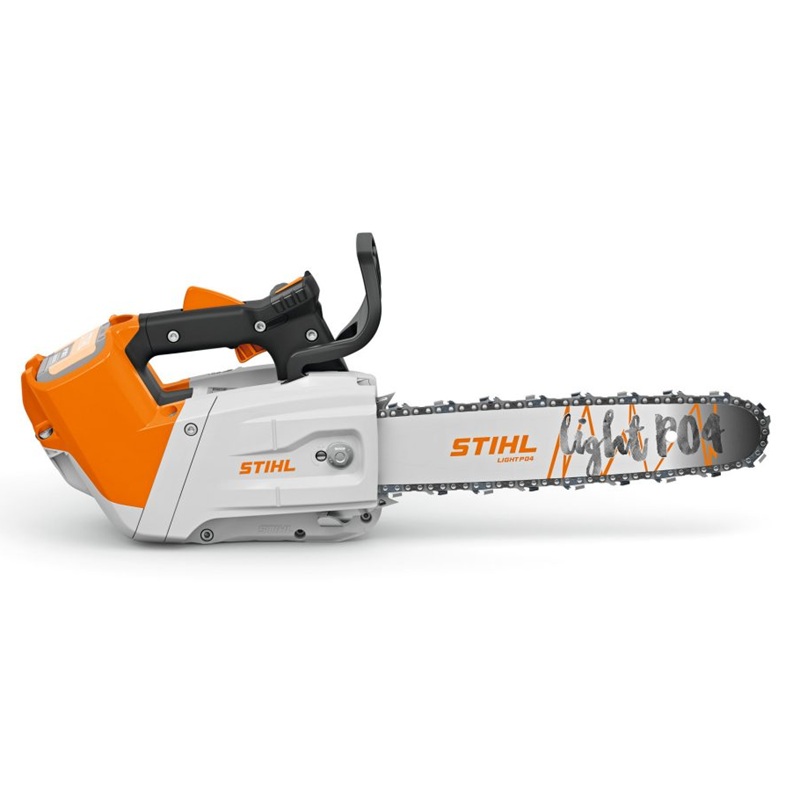

The STIHL MSA 220.1 TC-O is a high-performance professional cordless top-handle chainsaw developed for trained arborists carrying out demanding tree-care work.

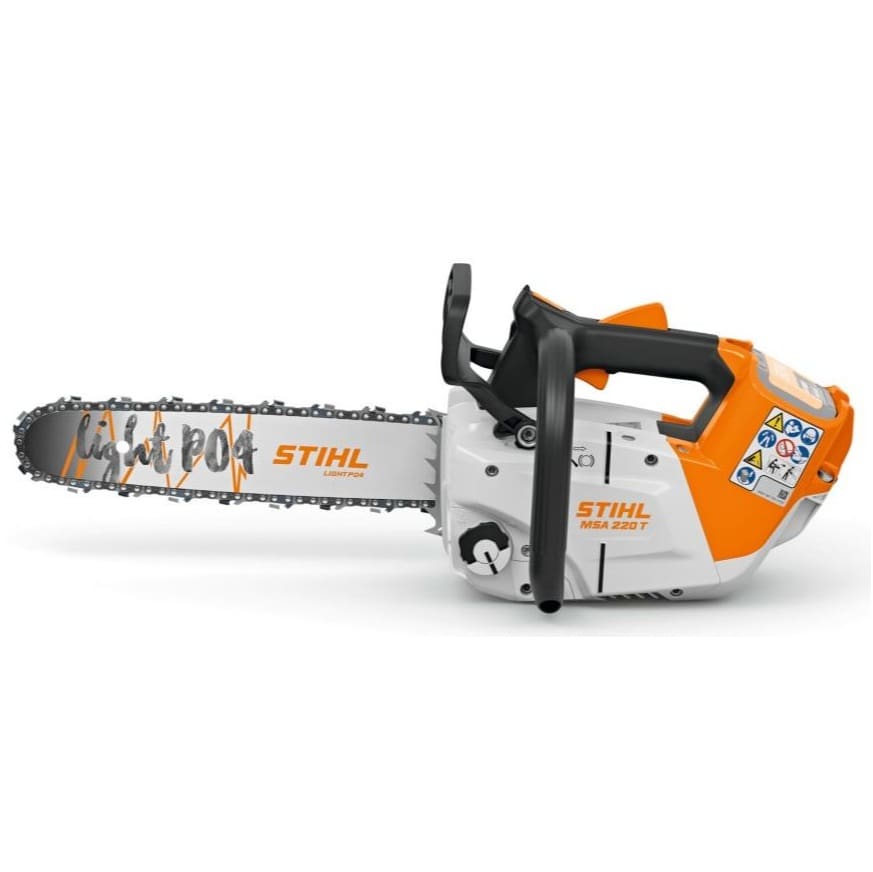

It is the upgraded replacement for the previous MSA 220 T and MSA 220 TC-O generation. STIHL has increased torque by 10%, reduced the machine’s weight and added Power Boost technology, allowing the saw to access the battery’s peak electrical output when cutting conditions demand it.
The MSA 220.1 TC-O is supplied with a 30 cm / 12″ STIHL Light P04 guide bar and a high-performance 3/8″ P Picco Super 3 saw chain.
This specialist top-handle chainsaw is available for purchase and use by trained or certified arborists only.
Browse Masseys’ complete range of professional top-handle chainsaws or view our wider selection of STIHL cordless chainsaws.
Important purchase information
This listing is for the tool-only STIHL MSA 220.1 TC-O.
The following are not included:
- Battery
- Battery charger
- Chain oil
- Personal protective equipment
The chainsaw must be used with a compatible STIHL AP 200 S, AP 300 S or AP 500 S battery to achieve full performance.
The STIHL AP 300 S battery is the recommended option because it provides the best balance between performance, working time and handling.
For the longest published working time, choose the STIHL AP 500 S battery. Its additional weight will alter the overall balance of the saw.
A compatible charger can be selected from Masseys’ range of STIHL battery chargers.
The chain-oil tank must be filled before use. Chain oil is not supplied with the chainsaw.
Key features of the STIHL MSA 220.1 TC-O
- STIHL’s highest-performing cordless top-handle chainsaw
- For trained or certified arborists
- 10% more torque than the previous MSA 220 T generation
- Power Boost for maximum available battery output
- Constant Power electronics
- 36 V professional STIHL AP System
- Compatible with AP 200 S, AP 300 S and AP 500 S batteries
- AP 300 S recommended for optimum balance
- 30 cm / 12″ STIHL Light P04 guide bar
- 3/8″ P Picco Super 3 saw chain
- 1.3 mm chain gauge
- Oil-supply sensor with LED warning
- Variable-displacement oil pump
- Electronic trigger and unlock control
- Large LED operating-status display
- Side-mounted chain tensioning
- Tool-free oil-tank cap
- Easy-to-clean fleece cooling-air filter
- Captive sprocket-cover nut
- Fold-out suspension hook
- Removable battery compartment for easier cleaning
- Performance electronics with derating protection
- Efficient, low-maintenance EC motor
- IPX4 splashwater protection
- Designed for secure two-handed operation
What is the MSA 220.1 TC-O designed for?
The MSA 220.1 TC-O is intended for specialist professional tree-care work in the canopy.
Suitable applications include:
- Crown correction
- Removing dead or damaged branches
- Sectioning branches during dismantling work
- Removing suitable pieces of trunk
- Professional pruning and crown maintenance
- Working in noise-sensitive environments
It is not a general-purpose domestic saw and should not be promoted for routine ground-based firewood cutting or conventional felling.
For professional ground-based cutting, compare the rear-handle STIHL MSA 220 C-B cordless chainsaw.
10% more torque than the previous model
The MSA 220.1 TC-O produces 10% more torque than the previous MSA 220 T and TC-O generation.
The additional torque helps the cutting attachment maintain performance when working through denser timber or completing more demanding professional cuts.
This improvement is particularly valuable during crown reduction and dismantling work, where the saw may encounter changing wood diameters and cutting positions.
Power Boost technology
Power Boost allows compatible STIHL batteries and tools to communicate electronically so the chainsaw can draw the highest suitable battery output for the cutting task.
STIHL specifies:
- Standard electrical output of approximately 1.25 kW
- Peak battery output of up to approximately 1.8 kW through Power Boost
- Comparative mechanical power rating of 1.70 kW
The intelligent electronics can temporarily regulate output during exceptionally intensive use to protect the battery and power unit.
Constant Power performance
STIHL Constant Power electronics help maintain consistent cutting performance as the battery charge decreases.
The chainsaw does not simply become progressively slower as the battery runs down. The electronic control system maintains output until the remaining battery capacity or operating temperature requires the power to be regulated.
Battery compatibility and working times
The MSA 220.1 TC-O can deliver full performance with the following professional STIHL batteries:
- STIHL AP 200 S
- STIHL AP 300 S
- STIHL AP 500 S
AP 200 S: lowest operating weight
The AP 200 S provides the lightest compatible battery configuration. It is useful where reducing total weight is more important than achieving maximum working time.
This can be particularly beneficial during prolonged climbing work or tasks involving repeated repositioning of the saw.
AP 300 S: recommended balance
STIHL recommends the AP 300 S because its weight helps counterbalance the 30 cm guide bar.
With a fully charged AP 300 S, STIHL states that the MSA 220.1 TC-O can provide up to approximately 24 minutes of working time.
View the STIHL AP 300 S professional battery.
AP 500 S: longest working time
The AP 500 S increases the published working time to up to approximately 34 minutes.
It is the appropriate option where reducing the frequency of battery changes is more important than maintaining the lightest or best-balanced configuration.
View the STIHL AP 500 S battery.
Actual working time will vary according to timber diameter, wood density, chain condition, cutting technique, battery temperature and operating conditions.
30 cm Light P04 guide bar
The MSA 220.1 TC-O is supplied with a 30 cm / 12″ STIHL Light P04 guide bar.
The lightweight bar reduces mass at the front of the saw, helping improve balance and manoeuvrability during professional canopy work.
The compact cutting attachment provides useful capacity for crown work and sectional dismantling without making the saw unnecessarily long or difficult to position between branches.
3/8″ P Picco Super 3 chain
The standard cutting system uses a 3/8″ P Picco Super 3 full-chisel chain with a 1.3 mm drive-link gauge.
The PS3 chain is designed to provide:
- High cutting performance
- Clean and precise cuts
- Excellent biting characteristics
- Efficient use of the available battery power
Correct sharpening, tension and lubrication are essential for maintaining performance.
Contact Masseys before ordering from our replacement chainsaw chain range so that we can confirm the correct chain for the fitted guide bar.
Oil sensor with LED warning
The TC-O version includes an electronic oil-supply sensor.
The sensor monitors whether sufficient chain oil is reaching the cutting attachment. If the LED warning turns red, inadequate oil is reaching the guide bar and chain.
The machine should be stopped and the following checked:
- Chain-oil level
- Oil-tank cap
- Oil-delivery opening
- Guide-bar oil channels
- Chain and guide-bar condition
The oil warning helps prevent avoidable damage, but it does not replace manual checks before starting work.
Variable-displacement oil pump
The adjustable oil pump allows the chain-oil delivery rate to be matched more closely to the cutting conditions.
The economy setting can reduce chain-oil consumption by up to 50% during less demanding work.
Additional oil delivery can be selected when working with very dry timber or where the cutting attachment requires increased lubrication.
Always fill the tank with suitable STIHL chainsaw chain oil before the first use.

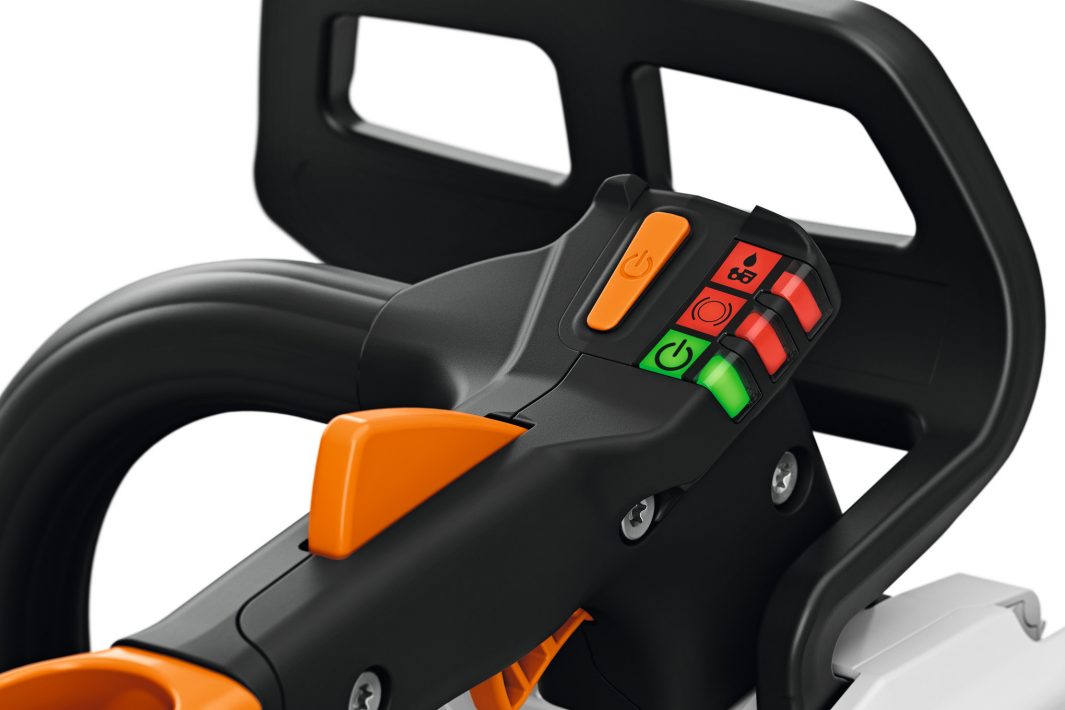

Electronic controls and LED display
The saw is activated using an electronic unlock button and trigger rather than a pull-start mechanism.
The large LED display provides information about important operating conditions, including:
- Chainsaw activation status
- Chain-brake position
- Oil-supply warning
- Relevant operating or fault information
The display is positioned where it can be checked quickly during professional work.
Performance electronics with derating protection
The electronic derating system protects the saw from excessive temperature and very low remaining battery capacity.
Instead of switching off without warning, the system can reduce power so that a cut already in progress can be completed safely.
This helps protect the battery and motor while giving the operator clear warning that the machine requires cooling or a charged battery.

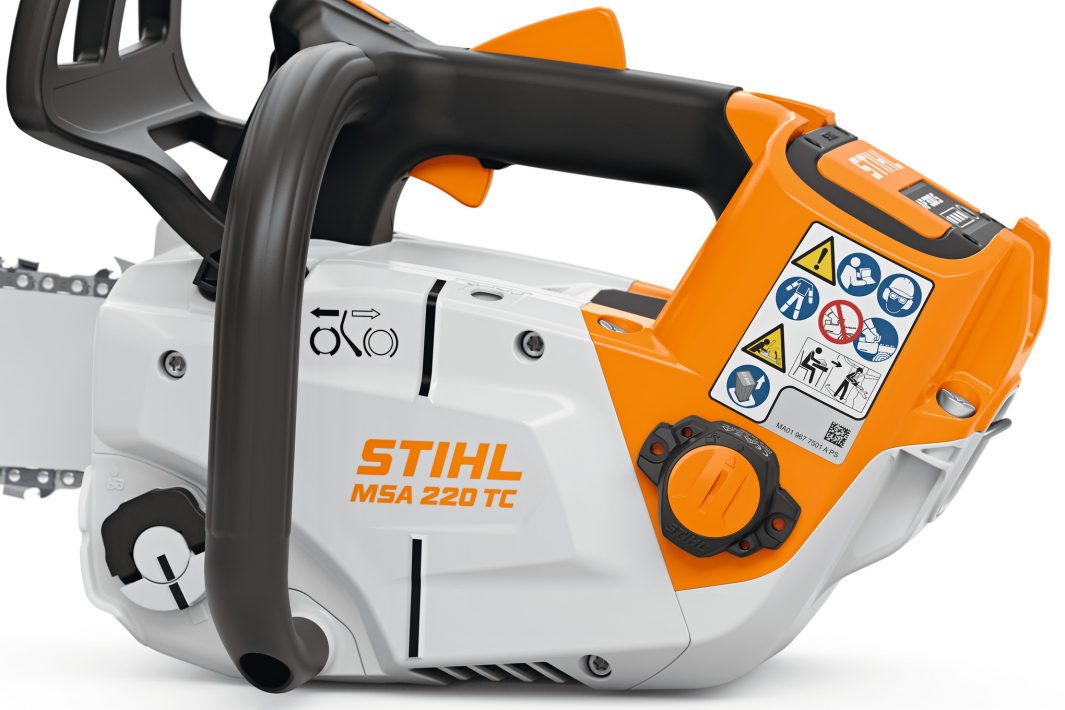

Side-mounted chain tensioning
The chain is adjusted through a tensioning screw positioned at the side of the sprocket cover.
This provides protected access to the adjustment mechanism without placing the tool directly beside the sharp chain teeth.
Chain tension should be checked:
- Before starting work
- After installing a new chain
- During longer working sessions
- Whenever the chain no longer sits correctly against the guide bar
Remove the battery and wear suitable gloves before handling or adjusting the chain.
Tool-free oil-tank cap
The oil tank uses a bayonet-style cap that can be opened and closed without a separate tool.
Ensure that the cap is correctly aligned and fully locked after filling to prevent leakage during climbing or transport.
Fleece cooling-air filter
The reusable fleece filter removes sawdust, dust and debris from the cooling airflow before it reaches the motor and electronic components.
Keeping the filter clean supports consistent cooling and helps extend the working life of the machine.
STIHL recommends regular cleaning, with more frequent attention during intensive or dusty work.
Removable battery compartment
The battery compartment can be removed to improve access when cleaning the saw.
This makes it easier to remove accumulated sawdust and debris from areas around the battery housing and cooling system.
Always remove the battery before cleaning or maintaining the chainsaw.
Captive sprocket-cover nut
The sprocket-cover nut remains attached to the cover when loosened.
This reduces the chance of dropping or losing it during chain changes or maintenance, particularly when work is being carried out away from the ground.
Fold-out suspension hook
The integrated hook provides an attachment point for connecting the saw to a suitable chainsaw strop.
It can be used to lift, lower or secure the machine during appropriately managed professional tree work.
The hook folds against the housing when it is not required, reducing interference during storage and handling.
Two-handed operation
The MSA 220.1 TC-O must not be treated as a one-handed chainsaw.
The ergonomic top handle and front grip are designed to be held securely with both hands whenever the machine is running.
One-handed operation significantly increases the risk of losing control and should not be promoted as a normal operating method.
IPX4 splashwater protection
The saw is IPX4 rated for protection against splashwater from different directions.
This allows professional use in changeable outdoor conditions, but it does not mean that the machine can be submerged, pressure washed or stored while wet.
Follow the operating instructions for cleaning, drying and storage.
Tool-only package contents
The standard package includes:
- STIHL MSA 220.1 TC-O cordless top-handle chainsaw
- 30 cm / 12″ STIHL Light P04 guide bar
- 3/8″ P Picco Super 3 saw chain
- Guide-bar scabbard
- Combination tool
- Operating and safety instructions
Battery, charger, chain oil and protective equipment are not included.
MSA 190 T or MSA 220.1 TC-O?
| Feature | STIHL MSA 190 T | STIHL MSA 220.1 TC-O |
|---|---|---|
| Intended workload | Professional lighter pruning and tree maintenance | Demanding crown work and sectional dismantling |
| Performance priority | Lower weight and manoeuvrability | Maximum cordless top-handle cutting performance |
| Oil sensor | No | Yes |
| Power Boost | No | Yes |
| Best suited to | Routine professional pruning | More demanding professional tree work |
Choose the STIHL MSA 190 T where lower weight is the main priority.
Choose the MSA 220.1 TC-O where maximum battery top-handle performance, additional torque and oil-supply monitoring are more important.
MSA 220.1 TC-O or MS 201 TC-M?
The MSA 220.1 TC-O provides instant electronic starting, lower operational noise and no direct exhaust emissions while cutting.
The petrol STIHL MS 201 TC-M may remain preferable where:
- Very long continuous working periods are required
- Rapid refuelling is more practical than rotating batteries
- Charging facilities are unavailable
- The operator already runs a petrol arborist fleet
The appropriate choice depends on workload, climbing time, battery infrastructure, noise restrictions and operator preference.
Technical specifications
| Specification | Details |
|---|---|
| Model | STIHL MSA 220.1 TC-O |
| Product type | Professional cordless top-handle chainsaw with oil sensor |
| Intended operator | Trained or certified arborists |
| Battery system | STIHL AP / ALLPRO System |
| Rated voltage | 36 V |
| Maximum voltage | 40 V |
| Comparative mechanical power | 1.70 kW |
| Standard electrical output | Approximately 1.25 kW |
| Peak battery output with Power Boost | Up to approximately 1.8 kW |
| Compatible full-performance batteries | AP 200 S, AP 300 S and AP 500 S |
| Recommended battery | STIHL AP 300 S |
| Working time with AP 300 S | Up to approximately 24 minutes |
| Working time with AP 500 S | Up to approximately 34 minutes |
| Guide-bar length | 30 cm / 12 inches |
| Guide bar | STIHL Light P04 |
| Chain pitch | 3/8″ P |
| Chain gauge | 1.3 mm |
| Chain type | STIHL Picco Super 3 |
| Chain tensioning | Side mounted |
| Chain lubrication | Automatic variable-displacement oil pump |
| Oil monitoring | Electronic oil-supply sensor with LED warning |
| Motor | STIHL EC motor |
| Operating display | Large LED status display |
| Weather protection | IPX4 splashwater protection |
| Manufacturer part number | MA012000068 |
| Package type | Tool only |
Safety and operator requirements
The STIHL MSA 220.1 TC-O is a professional high-speed chainsaw. Incorrect use can cause serious or fatal injury.
- Purchase and use only if appropriately trained or certified
- Read the complete instruction and safety manuals
- Maintain a secure two-handed grip
- Use approved climbing and work-positioning equipment
- Secure the chainsaw using an appropriate chainsaw strop
- Wear suitable chainsaw protective clothing
- Wear an approved helmet, eye protection and hearing protection
- Use appropriate arborist footwear and gloves
- Remove the battery before adjustment, cleaning or maintenance
- Fit the guide-bar scabbard during transport and storage
- Do not use the saw for ordinary ground-based firewood or felling work
Browse Masseys’ chainsaw protective trousers and wider range of chainsaw and arborist accessories.
Why buy the STIHL MSA 220.1 TC-O from Masseys?
Masseys is a STIHL Authorised Dealer with experience supplying and supporting professional chainsaws and STIHL AP System equipment.
Buying from Masseys gives you access to:
- Advice on restricted professional top-handle chainsaws
- Help choosing between AP 200 S, AP 300 S and AP 500 S batteries
- Advice on charging and battery rotation
- Genuine STIHL batteries, chargers and cutting attachments
- Correct replacement chains and guide bars
- Chain oil and protective equipment
- Chain sharpening and workshop support
- Warranty and after-sales assistance
- Local collection and delivery options
Our garden machinery servicing and repairs workshop can assist with inspections, repairs, chain sharpening and genuine STIHL replacement components.
For advice about the MSA 220.1 TC-O, compatible batteries or professional purchase requirements, please contact Masseys before ordering.
Frequently asked questions
What does TC-O mean?
T identifies the specialist top-handle configuration. The O identifies the electronic oil-supply sensor. The model also includes professional comfort and control features represented within STIHL’s product naming.
Who can purchase the MSA 220.1 TC-O?
STIHL specifies that this model is available for purchase by trained or certified arborists only.
Is a battery included?
No. The product is supplied as a tool-only machine. A compatible battery and charger must be purchased separately.
Which batteries can provide full performance?
The MSA 220.1 TC-O can provide full performance with AP 200 S, AP 300 S and AP 500 S batteries.
Which battery does STIHL recommend?
The AP 300 S is recommended because it provides the best balance between working time, weight and guide-bar balance.
How long does the AP 300 S last?
STIHL states that the AP 300 S provides up to approximately 24 minutes of working time. Actual working time depends on timber, chain condition, temperature and cutting technique.
How long does the AP 500 S last?
The AP 500 S provides up to approximately 34 minutes of published working time, although its additional weight changes the saw’s balance.
What is the advantage of the AP 200 S?
The AP 200 S creates the lightest compatible battery configuration, which can reduce fatigue during prolonged climbing and pruning work.
Does the chainsaw include chain oil?
No. Suitable chain oil is required but must be purchased separately.
How does the oil sensor work?
The sensor monitors whether sufficient oil is reaching the guide bar and chain. A red LED warning appears when the oil supply is inadequate.
What guide bar is fitted?
The saw is supplied with a 30 cm / 12-inch STIHL Light P04 guide bar.
Which saw chain does it use?
It uses a 3/8″ P Picco Super 3 chain with a 1.3 mm drive-link gauge.
Does it have Power Boost?
Yes. Power Boost allows the tool to access the highest suitable output from a compatible STIHL battery when cutting demand increases.
Can it be operated one-handed?
No. The MSA 220.1 TC-O is designed for secure two-handed operation. One-handed use significantly increases the risk of losing control.
Can it be used for firewood?
It is not intended as a general ground-based firewood chainsaw. Choose a suitable rear-handle chainsaw for regular cross-cutting and log processing.
Can it be used for ground-based felling?
No. This is a specialist professional top-handle saw for in-tree arboricultural work. Conventional ground-based felling requires an appropriate rear-handle chainsaw and trained operator.
Can it be used in wet weather?
The chainsaw is IPX4 rated for splashwater protection. It must not be submerged, pressure washed or stored wet.
What is the difference between the MSA 220 T and MSA 220.1 TC-O?
The MSA 220.1 TC-O is the upgraded generation. It provides 10% more torque, Power Boost, lower weight, AP 200 S compatibility and an electronic oil-supply warning system.
