Description

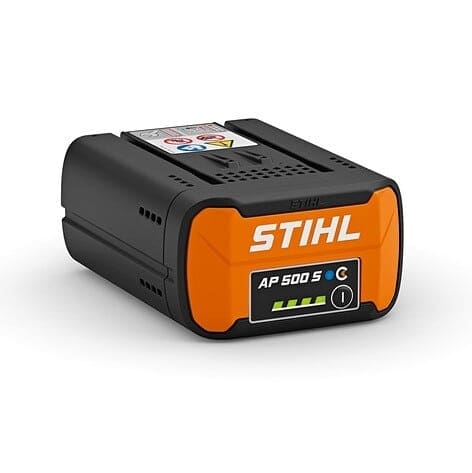

The Stihl AP500 S Battery is the most powerful battery in the Stihl AP System, designed for demanding professional and high-end domestic users who need maximum runtime and durability. This 36 V, 8.8 Ah lithium-ion battery offers a capacity of approximately 337 Wh, delivering noticeably longer working times than other AP batteries and providing outstanding performance across the full Stihl AP cordless range.
Available from Masseys in Swadlincote, Derbyshire, the Stihl AP 500 S Battery is compatible with all Stihl AP System tools, from chainsaws and brushcutters to blowers, hedge trimmers and Kombi motors.
Key benefits of the Stihl AP500 S Battery
- Most powerful Stihl AP battery: 36 V, 8.8 Ah and approx. 337 Wh capacity for very long runtimes.
- Power laminate technology: innovative construction that gives double the number of charge cycles
compared with typical AP batteries with cylindrical cells. - Exceptional service life: designed for up to around 10 years of daily professional use
(approx. 253 working days per year) without the usual capacity drop-off. - Fully compatible with all Stihl AP System tools – from high-performance saws like the
MSA 300 to blowers, strimmers and Kombi motors. - Integrated Bluetooth & Stihl connected: monitors battery usage, charge cycles and total discharge time.
- IPX4 weather rating: splash-proof and suitable for use in all typical UK weather conditions.
- LED charge indicator: four-stage LED display makes it easy to check charge status at a glance.
- Professional build quality: robust housing designed for long-term, daily use on site.
Who is the Stihl AP500 S Battery for?
The Stihl AP500 S Battery is ideal for:
- Professional landscapers and grounds teams needing maximum runtime and minimal downtime.
- Local authorities, estates and facilities managers using a fleet of Stihl AP tools daily.
- Tree surgeons and forestry contractors using high-draw tools such as the Stihl MSA 300 chainsaw.
- Demanding homeowners and landowners who want the best possible performance from their cordless tools.
If you need a lighter, more budget-friendly battery for less intensive work, consider the Stihl AP 200 S Battery or Stihl AP 300 S Battery.
Main features of the Stihl AP500 S Battery
High capacity 337 Wh battery
- 36 V, 8.8 Ah lithium-ion battery with approx. 337 Wh energy content.
- Provides up to 20% more runtime than previous high-end AP batteries in many tools.
- Ideal for running high-demand machines such as the MSA 300 chainsaw, BGA 300 backpack blower, FSA 200 brushcutter and TSA 300 cut-off saw.
Power laminate technology & extended service life
- Uses advanced power laminate cell technology rather than traditional cylindrical cells.
- Delivers double the number of charging cycles compared with typical AP System batteries, meaning far longer service life.
- With around 253 charge cycles per year (typical UK working days), the Stihl AP500 S can last close to 10 years of professional use with significantly less capacity loss over time.
Fully compatible with all Stihl AP System tools
- Designed to power any tool in the Stihl AP System, including:
- Gives these tools more runtime per charge, helping you complete larger jobs without constant battery changes.
Bluetooth connectivity & Stihl connected
- Built-in Bluetooth interface allows the AP500 S to be integrated into the Stihl connected fleet management system.
- Monitor total discharge time, number of charge cycles and battery status via the Stihl connected App.
- Helps contractors and fleet managers track usage, plan maintenance and optimise battery rotation.
LED charge indicator & robust design
- Four-LED charge indicator on the front of the battery – check remaining capacity at a glance.
- Robust housing designed to withstand professional daily use on site and in vehicles.
- IPX4 weather rating – splash-proof and suitable for working in rain or damp conditions.
- Battery weight of around 2.0 kg, giving a solid balance of capacity and handling on professional tools.
Charging times & compatible chargers
The Stihl AP500 S Battery can be charged with any current Stihl AP / AK charger.
Typical charging times are:
- AL 101 standard charger: approx. 280 minutes to 80% / 355 minutes to 100%.
- AL 301 quick charger: approx. 70 minutes to 80% / 90 minutes to 100%.
- AL 301-4 multiple charger: approx. 70 minutes to 80% / 90 minutes to 100%.
- AL 500 high-speed charger: approx. 40 minutes to 80% / 55 minutes to 100%.
You can see the full charger range here:
https://www.masseys-diy.co.uk/stihl-battery-chargers/
Typical uses for the Stihl AP500 S Battery
- Heavy-duty chainsaw work with the MSA 300 and other high-draw saws.
- Large-scale blowing and clearing with AP blowers such as the BGA 250 or BGA 300 (via connecting system).
- Long trimming and strimming sessions with tools like the HSA 100 hedge trimmer and FSA 200 brushcutter.
- Full-day professional rounds where minimising battery swaps and maximising runtime are essential.
Technical specifications – Stihl AP 500 S Battery
- Model: Stihl AP500 S
- Battery system: Stihl AP System
- Rated voltage: 36 V
- Capacity: approx. 8.8 Ah
- Energy content: approx. 337 Wh (according to cell manufacturer)
- Battery cell technology: lithium-ion, power laminate design
- Battery weight: approx. 1.9–2.0 kg
- Charge voltage: around 41.9 V
- Operating temperature range: approx. –10 °C to +50 °C (discharge)
- Protection rating: IPX4 (splash-water resistant)
- Connectivity: integrated Bluetooth for Stihl connected
- Charge status display: 4-LED indicator
- Compatible chargers: AL 101, AL 301, AL 301-4, AL 500
Compare the Stihl AP 500 S with other Stihl AP batteries
If you are deciding which Stihl AP battery best suits your needs, compare the
Stihl AP 500 S Battery with:
- Stihl AP 200 S Battery – lighter battery for general-purpose and domestic use.
- Stihl AP 300 S Battery – popular professional battery with an excellent balance of weight and capacity.
Official Stihl information (external link)
For the latest manufacturer specifications, usage recommendations and product support, you can also view the
Stihl AP500 S Battery on the official Stihl UK website:
Why buy the Stihl AP500 S Battery from Masseys?
- Authorised Stihl dealer – genuine Stihl batteries, chargers and tools with full UK warranty support.
- Extensive Stihl display – compare AP batteries and cordless tools side by side in our Swadlincote showroom.
- Expert advice – we can recommend the right combination of batteries, chargers and tools for your workload.
- On-site workshop – servicing and repairs for Stihl cordless and petrol machinery.
- Open 7 days a week in Swadlincote, Derbyshire – or order the Stihl AP 500 S Battery online for convenient UK delivery.
If you want maximum runtime, lifespan and performance from your cordless tools, the Stihl AP500 S Battery from Masseys is the top choice in the AP System – particularly when paired with our range of Stihl chargers and professional cordless tools.
