Description

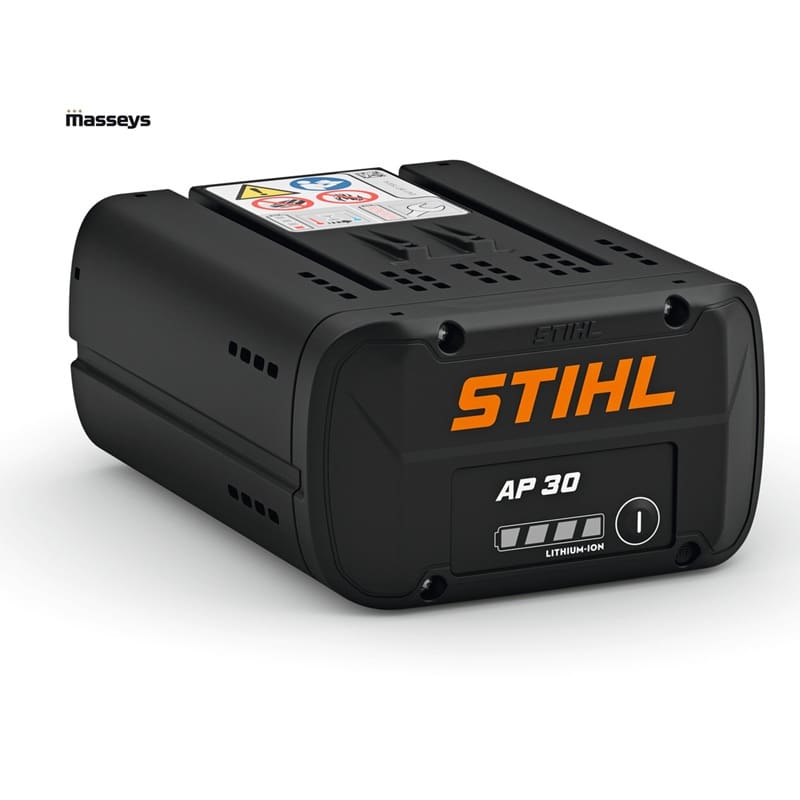

The STIHL AP 30 Battery is a 36V, 270Wh lithium-ion battery for selected tools in the professional STIHL AP System. It is designed as a cost-effective, longer-runtime power source for lighter gardening, landscaping and tree-maintenance equipment.
The AP 30 weighs 1.8kg, has an integrated four-LED charge indicator and is IPX4 rated for protection against splash water. It can be charged using the STIHL AL 101, AL 301, AL 301-4 and AL 501 chargers.
Important compatibility note: the AP 30 does not provide full power in every STIHL AP System tool, and it cannot be used with certain high-output machines. Check the compatibility guidance below or contact Masseys before ordering if you are unsure.
Product identification: this listing is for the STIHL AP 30, manufacturer part number 48504006546. It is not the newer AP 30.1 battery.
Browse the complete STIHL AP System range, view all STIHL cordless machinery or compare our STIHL battery chargers.
Is the STIHL AP 30 right for you?
The AP 30 is best suited to domestic, semi-professional and professional users who need useful runtime from lighter AP System tools but do not require the maximum power output, fleet connectivity or broader high-demand compatibility of STIHL’s premium AP batteries.
It is a particularly practical choice for routine hedge cutting, grass trimming, leaf clearing, light pruning, spraying, cleaning and other moderate workloads. Its 270Wh energy capacity provides substantially more stored energy than the AP 20 and AP 200 S, although battery choice should also be based on tool compatibility and power requirements rather than capacity alone.
- 36V rated voltage for compatible STIHL AP System tools
- 270Wh energy capacity for useful working times
- 7.2Ah rated capacity under IEC 61960
- 1.8kg battery weight
- IPX4 splash-water protection
- Four-LED charge indicator
- Cold-start protection for operation in low temperatures
- Constant power management throughout the battery charge
STIHL AP 30 key specifications
| Specification | STIHL AP 30 |
|---|---|
| Battery system | STIHL AP System |
| Battery technology | Lithium-ion |
| Rated voltage | 36V |
| Maximum voltage | 40V |
| Energy capacity | 270Wh |
| Rated capacity under IEC 61960 | 7.2Ah |
| Nominal capacity stated by STIHL | 7.5Ah |
| Weight | 1.8kg |
| Weather protection | IPX4 splash-resistant |
| Charge display | Four integrated LEDs |
| Manufacturer part number | 48504006546 |
Which tools can use the STIHL AP 30?
The AP 30 fits selected STIHL AP System equipment, but performance depends on the power requirements of the individual machine. Some tools receive full power, some operate at reduced power and certain high-output machines cannot use this battery.
Examples of suitable full-power applications
STIHL currently identifies the AP 30 as a full-power option for many lighter and medium-demand tools, including selected models from the following ranges:
- STIHL BGA 86, BGA 100, BGA 160, BGA 200 and BGA 250 blowers
- STIHL FSA 86, FSA 90, FSA 110, FSA 120, FSA 130 and FSA 135 trimmers and brushcutters
- STIHL HLA 66, HLA 86, HLA 135, HLA 140 and HLA 150 long-reach hedge trimmers
- STIHL HSA 66, HSA 86, HSA 100, HSA 130, HSA 140 and HSA 150 hedge trimmers
- STIHL HTA 66 and HTA 86 pole pruners
- Selected lighter STIHL MSA arborist and rear-handle chainsaws
- Selected STIHL RMA professional lawn mowers
- STIHL REA 100 pressure washer
- STIHL SEA 100 vacuum cleaner
- STIHL SGA 85 sprayer
- STIHL SHA 140 vacuum shredder
Popular compatible tools available from Masseys include the STIHL BGA 86 cordless blower, STIHL HSA 100 hedge trimmer, STIHL HLA 66 long-reach hedge trimmer, STIHL FSA 110 R brushcutter and STIHL MSA 160 cordless chainsaw.
Tools that may operate at reduced power
The AP 30 can be used with some higher-demand AP tools, but those machines may not deliver their maximum available performance. Current examples include:
- STIHL BGA 300 backpack blower
- STIHL HTA 135, HTA 150 and HTA 160 pole pruners
- STIHL KMA 120, KMA 135 and KMA 200 KombiMotors
- STIHL MSA 200 and MSA 220 chainsaws
- STIHL ASA 140 secateurs
- STIHL RMA 453 PV lawn mower
For these tools, consider the STIHL AP 300 S Battery or STIHL AP 500 S Battery if full performance or longer intensive use is required.
Tools that cannot use the STIHL AP 30
The AP 30 must not be used with certain high-output machines. Current examples include:
- STIHL FSA 200 and FSA 400 brushcutters or clearing saws
- STIHL MSA 300 chainsaw
- STIHL TSA 230, TSA 300, TSA 350 and TSA 500 cut-off saws
Compatibility can change as new products are introduced. Check the recommendation shown on the relevant tool page or ask the Masseys team to confirm the correct battery before purchasing.
STIHL AP 30 charging times
The AP 30 is compatible with the STIHL AL 101, AL 301, AL 301-4 and AL 501 chargers. Approximate charging times are shown below.
| STIHL charger | Approx. time to 80% | Approx. time to 100% | Best suited to |
|---|---|---|---|
| AL 101 Standard Charger | 235 minutes | 295 minutes | Occasional or overnight charging |
| AL 301 Quick Charger | 60 minutes | 80 minutes | Regular domestic and professional use |
| AL 301-4 Multiple Charger | 60 minutes | 80 minutes | Sequential management of several AP batteries |
| AL 501 Hi-Speed Charger | 35 minutes | 50 minutes | Minimising downtime between jobs |
Compare STIHL AL battery chargers at Masseys.
STIHL AP 30 compared with other AP batteries
The best STIHL AP battery is not always the model with the largest Wh figure. Weight, available power, tool compatibility, connectivity and charging time should also be considered.
| Battery | Energy | Position in the range | Best for |
|---|---|---|---|
| STIHL AP 20 | 144Wh | Smaller entry-level battery | Lighter tools, shorter jobs and reduced carrying weight |
| STIHL AP 200 S | 187Wh | Lighter professional S-series battery | Users who value lower battery weight, broader power delivery and STIHL connected |
| STIHL AP 30 | 270Wh | Cost-effective, longer-runtime entry-level battery | Lighter and medium-demand tools where maximum output is not required |
| STIHL AP 300 S | 281Wh | High-performance professional battery | Demanding tools, broad full-power compatibility and fleet monitoring |
| STIHL AP 500 S | 337Wh | Top-capacity AP battery | High-output tools, intensive workloads and maximum runtime |
Why Masseys recommends the STIHL AP 30
Masseys recommends the AP 30 to customers who need useful runtime from lighter AP System equipment but do not require the maximum output or connected fleet features of the AP 300 S and AP 500 S.
Its 270Wh energy capacity makes it particularly attractive for routine hedge trimming, grass cutting, blowing, spraying and general grounds-maintenance work. It can also be a useful second battery for keeping compatible lower-demand equipment working while another battery is on charge.
We would not recommend choosing the AP 30 solely because it fits an AP battery slot. Several high-demand tools operate at reduced power with this battery, and some cannot use it at all. For professional chainsaws, large brushcutters, cut-off saws and the most demanding Kombi or blower applications, the AP 300 S or AP 500 S will usually be the more appropriate investment.
If you tell us which STIHL tools you own and how long you normally use them, the Masseys garden machinery team can help you compare battery weight, runtime, charging time and power compatibility before you buy.
STIHL AP 30 FAQs
Is the STIHL AP 30 compatible with every AP System tool?
No. The AP 30 is compatible with many AP System products, but not all of them provide full power with this battery. Certain high-demand tools operate at reduced power, while models such as the MSA 300 and several TSA cut-off saws cannot use it.
What is the difference between the AP 30 and AP 200 S?
The AP 30 stores more energy: 270Wh compared with 187Wh for the AP 200 S. However, the AP 200 S is lighter, supports STIHL connected and may be the better power match for some professional equipment. The decision should be based on the tool and workload, not capacity alone.
What is the difference between the AP 30 and AP 300 S?
The AP 30 has 270Wh of energy, while the AP 300 S has 281Wh. Both have a published weight of 1.8kg, but the AP 300 S is a higher-performance battery with broader full-power compatibility and STIHL connected. The AP 30 is positioned as the more cost-effective option for lighter or entry-level AP tools.
How long does a STIHL AP 30 take to charge?
A full charge takes approximately 295 minutes with the AL 101, 80 minutes with the AL 301 or AL 301-4, and 50 minutes with the AL 501.
Can the STIHL AP 30 be used in rain?
The battery is IPX4 rated for protection against splash water from all directions. It is designed for outdoor working conditions, but it should not be submerged, pressure-washed or stored wet. Always follow the battery and tool instructions.
Does the STIHL AP 30 include a charger?
No. This product is the battery only unless a bundle is expressly stated. A compatible STIHL AL charger must be purchased separately.
Is this the AP 30.1 battery?
No. This listing is for the STIHL AP 30, manufacturer part number 48504006546. Contact Masseys if you need help distinguishing it from the newer AP 30.1.
Why buy your STIHL AP 30 Battery from Masseys?
Masseys is a STIHL Authorised Dealer based in Woodville, near Swadlincote in Derbyshire. Our team can help you confirm whether the AP 30 will provide full power in your equipment, compare it with other STIHL batteries and select the most appropriate charger.
- Genuine STIHL battery with UK dealer support
- Compatibility advice before purchase
- AP batteries, chargers and tools available to compare
- Advice for domestic, semi-professional and professional users
- Online ordering and collection from our Swadlincote store
- Access to our garden machinery servicing and repair department
Still unsure which battery you need? Contact Masseys with the exact model number of your STIHL tool and our team will help you identify the correct battery and charger.
