Description

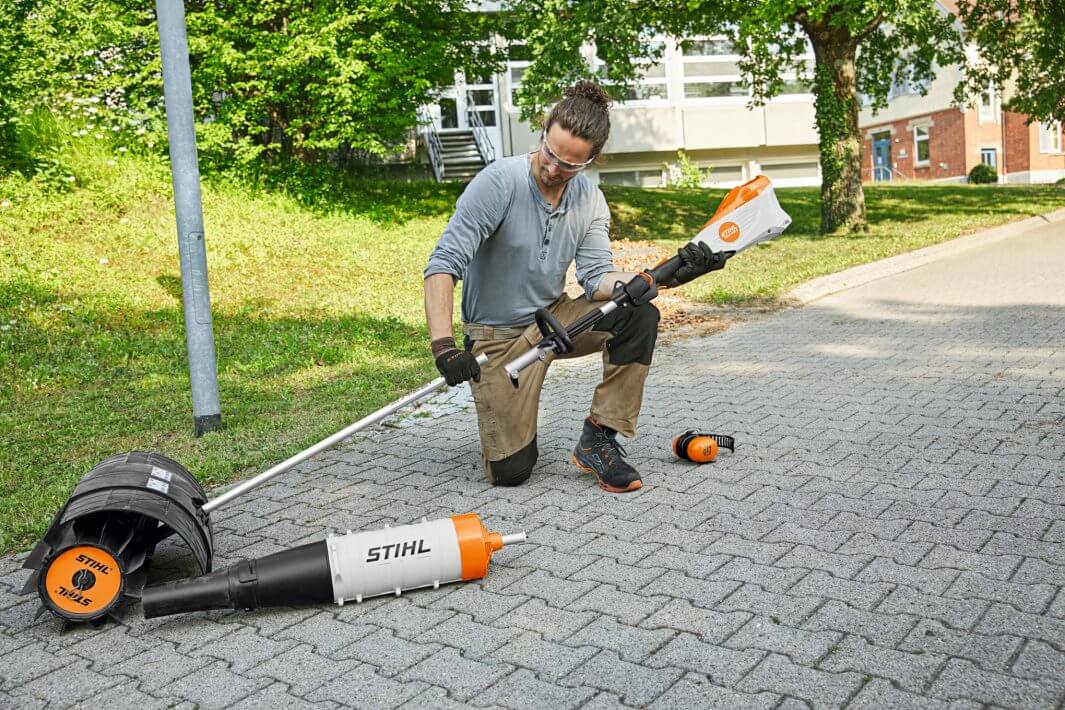

The STIHL KMA 135 R is a powerful professional cordless KombiMotor for landscapers, grounds-maintenance teams and demanding garden users. Powered by the STIHL AP System, it drives a wide range of STIHL KombiTools without petrol, fuel mixing or direct exhaust emissions during use.
Tool only: the battery, charger and KombiTool attachment are sold separately. A basic shoulder harness is included.
Professional cordless KombiMotor for the STIHL AP System
The KMA 135 R combines a high-performance brushless EC motor with three selectable speed levels, giving the operator greater control over power consumption, noise and performance. It is well suited to regular commercial work including trimming, edging, hedge cutting, blowing, sweeping and soil cultivation.
The loop handle makes the machine practical in confined spaces and on sloping ground, while the quick-release coupling allows compatible KombiTools to be changed without specialist tools.
Key benefits of the STIHL KMA 135 R
- Professional AP System performance: designed for regular, demanding cordless work.
- Three speed levels: select the appropriate output for the attachment and task.
- Brushless EC motor: efficient, low-maintenance power delivery.
- Wide KombiTool compatibility: use one engine with multiple garden-maintenance attachments.
- Low-noise operation: suitable for work around schools, hospitals, housing and other noise-sensitive locations.
- Loop handle with barrier bar: provides control in restricted spaces and when working on banks.
- In-machine battery slot: the AP battery fits directly into the KombiMotor.
- IPX4-rated construction: designed for professional outdoor operation in changing weather conditions.
- Smart Connector 2 A ready: prepared for compatible STIHL connected fleet-management equipment.
Who is the KMA 135 R suitable for?
The KMA 135 R is particularly well suited to professional landscapers, local authorities, estate teams, schools, contractors and users who already own batteries from the STIHL AP System.
It is also a strong choice for larger private gardens where one cordless power unit is required for several different jobs. For lighter domestic work, consider the STIHL KMA 80 R. For another professional AP System option, compare it with the STIHL KMA 120 R.
Three selectable speed levels
The control handle provides three speed settings so the machine can be matched more closely to the work being completed.
- Level 1: reduced output for lighter work and improved battery efficiency.
- Level 2: balanced performance for general maintenance.
- Level 3: maximum output for demanding attachments and heavier workloads.
Actual battery working time will depend on the KombiTool, selected speed, material being cut or moved, operator technique and weather conditions.
Compatible STIHL KombiTools
The KMA 135 R is compatible with STIHL KombiTools other than the FSB-KM attachment. This allows one power unit to complete a wide range of seasonal garden and grounds-maintenance jobs.
Popular compatible attachments include:
- STIHL HL-KM 145° long-reach hedge trimmer
- STIHL MB-KM brush attachment
- STIHL BG-KM blower attachment
- STIHL FCS-KM straight-shaft edger
View the complete STIHL KombiSystem range or read our STIHL KombiSystem buying guide for help choosing the correct engine and attachments.
Recommended battery and charger
The KMA 135 R operates with compatible batteries from the professional STIHL AP System.
- STIHL AP 300 S battery: a strong balance of capacity, weight and professional working time.
- STIHL AP 500 S battery: suitable where greater battery capacity and longer working periods are required.
- STIHL AP battery chargers: choose a compatible standard or rapid charger to suit your working schedule.
Backpack batteries may also be used with the appropriate STIHL connecting cable and carrying system. Battery and charger are not supplied with this tool-only machine.
Technical specifications
| Battery system | STIHL AP System |
|---|---|
| Rated voltage | 36 V |
| Motor | Brushless EC motor |
| Power settings | 3 selectable speed levels |
| Machine weight | 3.4 kg without battery or attachment |
| Overall length | 96 cm |
| Handle | Loop handle with barrier bar |
| Battery position | Integrated battery slot |
| Weather protection | IPX4 rated |
| Air filtration | Metal mesh air filter |
| Harness | Basic shoulder harness included |
| KombiTool compatibility | Compatible with STIHL KombiTools except FSB-KM |
| Manufacturer part number | FA020116800 |
| EAN / GTIN-13 | 0886661869213 |
Compare STIHL KombiMotors
| Model | Power system | Best suited to |
|---|---|---|
| STIHL KMA 80 R | AK System cordless | Domestic gardens and regular private use |
| STIHL KMA 120 R | AP System cordless | Professional users wanting a current AP System KombiMotor |
| STIHL KMA 135 R | AP System cordless | Regular professional work requiring three selectable speed levels |
| STIHL KM 56 RC-E | Petrol | Occasional and domestic petrol use |
| STIHL KM 131 R | Petrol | Demanding professional petrol applications |
Why buy the STIHL KMA 135 R from Masseys?
Masseys is an authorised STIHL dealer supplying professional cordless garden machinery, batteries, chargers and KombiSystem attachments.
- Machine assembly and pre-delivery inspection before collection or dispatch where applicable.
- Practical advice on choosing the correct battery, charger and attachment.
- Access to replacement parts and consumables.
- Professional garden machinery servicing and repairs.
- UK delivery and in-store support from our Derbyshire team.
For help building the right STIHL KombiSystem package, contact the Masseys team before ordering.
Frequently asked questions
Does the STIHL KMA 135 R include a battery and charger?
No. This listing is for the KMA 135 R power unit and basic shoulder harness. The AP battery, charger and KombiTool attachment are sold separately.
Which battery fits the STIHL KMA 135 R?
The machine uses compatible batteries from the STIHL AP System. The AP 300 S is a popular all-round professional option, while the AP 500 S offers a higher battery capacity for longer working periods.
Which attachments fit the KMA 135 R?
The KMA 135 R works with STIHL KombiTools other than the FSB-KM attachment. Compatible options include hedge trimmers, brushcutters, edgers, blowers, sweepers and cultivators.
Is the KMA 135 R suitable for professional use?
Yes. The KMA 135 R is designed for professional and demanding grounds-maintenance work. It uses the commercial STIHL AP battery system and includes three selectable speed levels.
Can the STIHL KMA 135 R be used in wet weather?
The machine has an IPX4 rating and is designed for professional outdoor use in changing weather. Always follow the operating manual, use compatible batteries correctly and never immerse the machine or battery in water.
How long does the battery last?
Working time depends on the battery, KombiTool, speed setting, workload and operating conditions. A hedge trimmer, blower and brushcutter can each place a different load on the same battery, so runtime should be checked for the intended attachment rather than quoted as one universal figure.
