Description
Lightweight fixed-shaft pole pruner for elevated branches

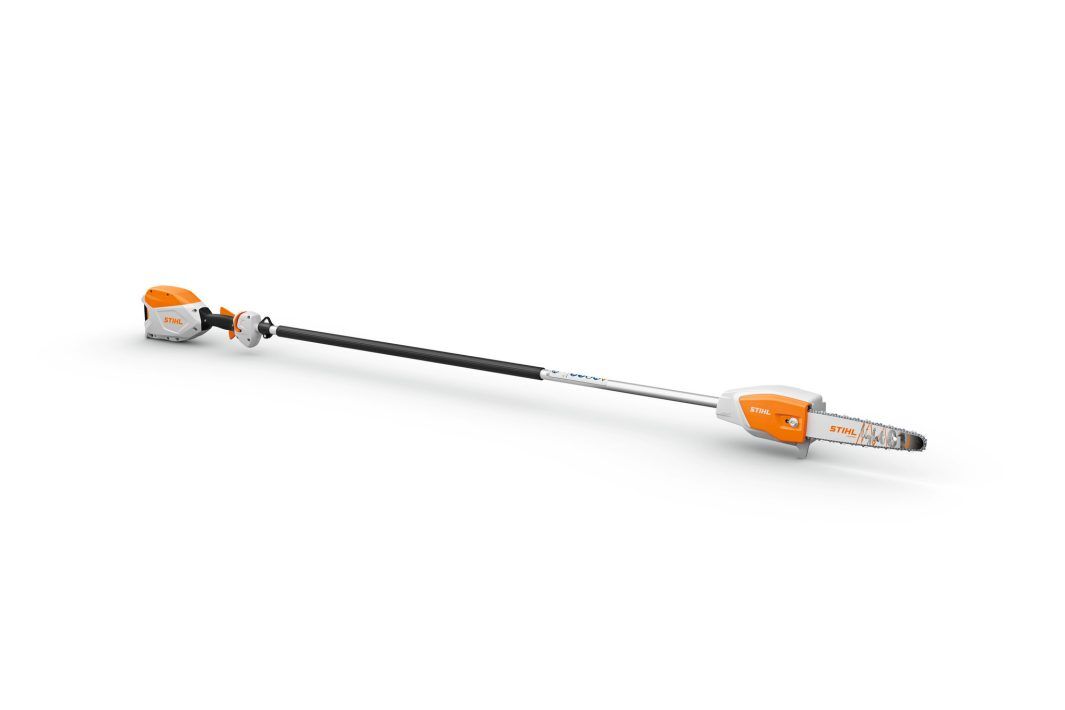

The STIHL HTA 66 is a professional-quality cordless pole pruner for pruning elevated branches from ground level.
Its fixed 240 cm shaft provides a rigid, predictable cutting platform, while the lightweight power head and balanced battery position make the tool easier to guide than larger telescopic models.
The HTA 66 is suitable for professional grounds maintenance, orchards, estates, local-authority work and private users maintaining larger gardens.
It belongs to the professional STIHL AP System, allowing compatible batteries to be shared with a wide range of STIHL cordless tools.
Important purchase information
The STIHL HTA 66 is supplied as a tool-only machine.
The following are not included:
- Battery
- Battery charger
- Chain oil
- Personal protective equipment
The STIHL AP 200 S battery is the recommended choice because it provides a strong balance between working time and overall tool weight.
Choose a compatible model from Masseys’ range of STIHL battery chargers.
The chain-oil tank must be filled before use. Chain oil is required but is not supplied.
Key features of the STIHL HTA 66
- Professional cordless pole pruner
- Fixed 240 cm shaft
- 25 cm / 10″ guide bar
- ¼″ P STIHL Picco Micro 3 saw chain
- 0.85 kW mechanical power
- 36 V STIHL AP System
- STIHL AP 200 S recommended battery
- Up to approximately 42 minutes with AP 200 S
- Efficient, low-maintenance EC motor
- STIHL Constant Power electronics
- Automatic chain lubrication
- Tool-free chain-oil cap
- Side-mounted chain tensioning
- Captive sprocket-cover nut
- Sturdy branch hook
- Intuitive control handle
- Suitable for left- or right-handed use
- Balanced design with low tilting torque
- IPX4 splashwater protection
- Tool-only weight of approximately 3.6 kg excluding battery, with the standard cutting attachment
Who is the STIHL HTA 66 suitable for?
The HTA 66 is designed for users who need to maintain elevated branches regularly but do not require an adjustable telescopic shaft.
Typical applications include:
- Pruning fruit trees
- Removing dead or damaged branches
- Maintaining tree crowns
- Reducing overhanging branches
- Orchard maintenance
- Estate and large-garden maintenance
- Professional landscaping and grounds care
- Working in noise-sensitive locations
The rigid shaft provides greater simplicity and lower weight than a telescopic design, making the HTA 66 particularly useful when its fixed reach is sufficient for the job.
Fixed 240 cm shaft
The STIHL HTA 66 has a fixed total length of approximately 240 cm.
It is not telescopic and cannot be extended or shortened.
The rigid shaft helps the guide bar remain stable during positioning and cutting. This can make precise cuts easier than with a longer, fully extended telescopic machine.
Depending on the operator’s height and the position of the branch, the tool can be used to work on branches at heights of up to approximately five metres from ground level.
For taller trees or jobs requiring adjustable reach, compare the STIHL HTA 86 telescopic pole pruner.
Balanced for control at height
The battery is positioned towards the rear of the machine to help counterbalance the cutting head and guide bar.
This reduces the forward tilting force that the operator must control when positioning the cutting attachment above shoulder height.
The AP 200 S is the recommended battery because its weight and capacity suit the balance of the HTA 66.
A larger battery provides longer working time but also increases the total weight held by the operator.
STIHL AP battery options and working times
The HTA 66 accepts compatible batteries from the STIHL AP System.
AP 200 S: recommended battery
The AP 200 S is the recommended battery for most users.
STIHL publishes a maximum working time of up to approximately 42 minutes with a fully charged AP 200 S.
Choose the STIHL AP 200 S when balance and manageable operating weight are the priorities.
AP 300 S: longer working time
The STIHL AP 300 S can provide up to approximately 68 minutes of published working time.
It is useful where reducing battery changes is more important than maintaining the lowest possible operating weight.
AP 500 S: maximum handheld-battery runtime
The STIHL AP 500 S can provide up to approximately 82 minutes of published working time.
Its higher capacity also makes it the heaviest of these three choices. For sustained overhead work, many users may find the lighter AP 200 S more comfortable.
Actual working time varies according to branch diameter, timber density, chain sharpness, cutting technique, temperature and battery condition.

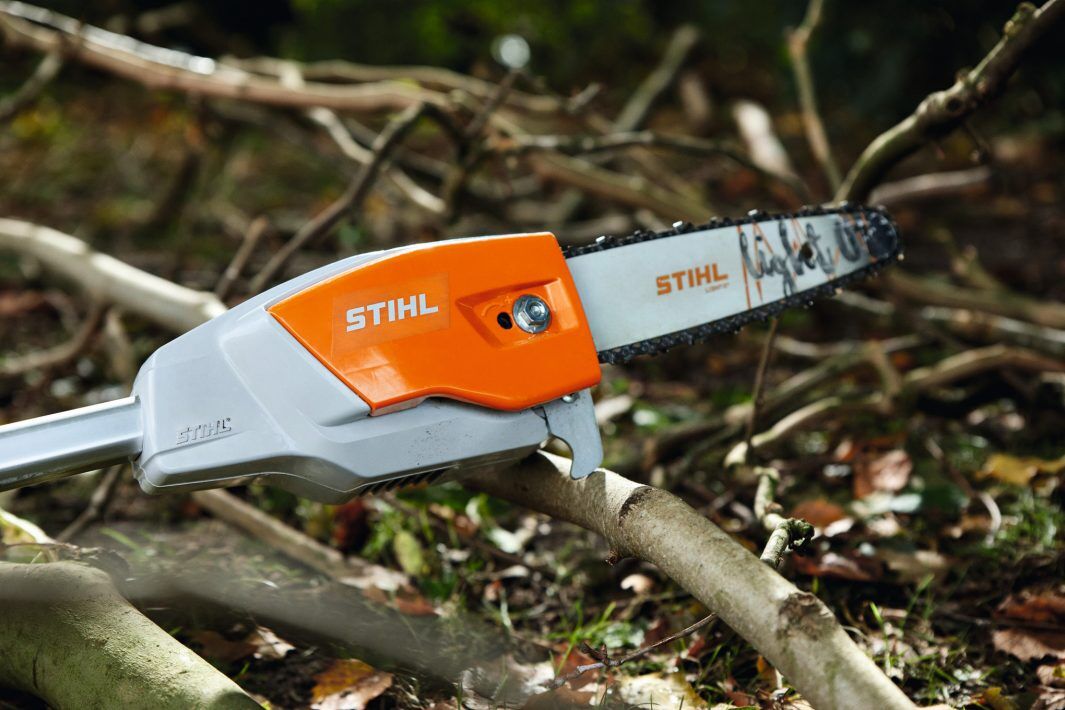

25 cm guide bar and PM3 saw chain
The current STIHL HTA 66 is supplied with a 25 cm / 10″ guide bar and a ¼″ P Picco Micro 3 saw chain.
The narrow-kerf PM3 chain is designed to provide:
- Clean pruning cuts
- Low vibration
- Efficient use of battery power
- Good control on small and medium branches
A sharp, correctly tensioned and properly lubricated chain is essential for accurate pruning and efficient battery use.
Contact Masseys before ordering from our replacement chainsaw chain range so we can confirm compatibility with your guide bar.
Side-mounted chain tensioning
The chain-tensioning screw is positioned at the side of the cutting head.
This provides convenient access to the adjustment mechanism while keeping the tool away from the sharp chain teeth.
The chain tension should be checked:
- Before each use
- After fitting a new chain
- During longer pruning sessions
- Whenever the chain no longer sits correctly against the underside of the guide bar
Remove the battery and wear protective gloves before adjusting or handling the saw chain.
Captive sprocket-cover nut
The sprocket-cover nut remains attached to the cover when loosened.
This reduces the risk of losing the nut while cleaning the cutting head or replacing the guide bar and chain outdoors.
Automatic chain lubrication
The HTA 66 automatically supplies oil to the guide bar and saw chain while the tool is operating.
The oil tank uses a tool-free cap, making it easier to refill without a separate cap tool.
Check the chain-oil level and oil delivery before starting work. Running the machine with insufficient lubrication can quickly damage the guide bar and chain.
Chain oil is not included. Add suitable STIHL chain oil before the first use.
Sturdy branch hook
The cutting head includes a robust branch hook.
After a branch has been cut, the hook can help pull loose cuttings clear where they have become caught in surrounding growth.
Do not stand directly beneath the branch or pull material towards yourself. Maintain a controlled working area and consider where each branch is likely to fall before cutting.
Intuitive control handle
The control handle uses a self-resetting locking switch, trigger and ERGO lever.
Once unlocked, the machine starts electronically by pressing the trigger. There is no starter cord, fuel choke or warm-up process.
The controls can be operated by right- or left-handed users, although the machine must always be held and controlled in accordance with the operating instructions.
STIHL Constant Power
STIHL Constant Power electronics help maintain consistent cutting performance as the battery charge decreases.
The tool does not simply become progressively slower throughout the battery cycle. The electronics maintain power until battery charge, temperature or operating conditions require output to be regulated.
Efficient EC motor
The HTA 66 uses a compact electronically commutated motor.
The EC motor is efficient, low maintenance and does not require servicing of carbon brushes. It also provides instant response when the trigger is pressed.
IPX4 splashwater protection
The HTA 66 is IPX4 rated for protection against splashwater from different directions.
This supports professional outdoor use in changeable conditions.
IPX4 does not mean that the tool can be submerged, pressure washed or stored wet. Follow the operating manual for cleaning, drying and storage.
Tool-only package contents
The standard package should include:
- STIHL HTA 66 cordless pole pruner
- 25 cm / 10″ guide bar
- Matching ¼″ P PM3 saw chain
- Guide-bar scabbard
- Combination tool
- Operating and safety instructions
Battery, charger, chain oil and protective equipment are not included.
HTA 50 vs HTA 66 vs HTA 86
| Model | Battery system | Shaft | Best suited to |
|---|---|---|---|
| STIHL HTA 50 | Domestic AK System | Fixed shaft that can be separated for transport; optional extension available | Private gardens and regular domestic tree maintenance |
| STIHL HTA 66 | Professional AP System | Fixed 240 cm shaft | Users prioritising lower weight, rigidity and professional AP compatibility |
| STIHL HTA 86 | Professional AP System | Telescopic shaft adjustable from approximately 270 to 390 cm | Taller trees and work requiring adjustable reach |
The HTA 66 and HTA 86 both have a published mechanical power output of 0.85 kW. The choice between them is primarily about reach, weight and shaft design rather than engine power.
For more demanding professional tree work requiring increased cutting output, compare the STIHL HTA 135.
Pole pruner or chainsaw?
Choose the STIHL HTA 66 when:
- The branches are above normal working height
- You want to work from ground level
- The main task is pruning and crown maintenance
- A rigid fixed shaft provides enough reach
Choose a conventional chainsaw when:
- You are cutting logs or processing firewood at ground level
- You need to fell suitably sized trees
- You need a shorter, more manoeuvrable ground saw
- The work involves larger timber beyond appropriate pole-pruner use
A pole pruner reduces the need to work from a ladder, but it does not remove the risks associated with a moving saw chain and falling branches.
Safety guidance
The HTA 66 uses a high-speed saw chain and must be operated carefully.
- Read the complete operating and safety instructions before use
- Keep other people and animals outside the working area
- Do not stand directly beneath the branch being cut
- Plan the likely fall direction before starting each cut
- Do not use the machine from a ladder
- Keep well clear of overhead electricity cables
- Wear suitable head, eye and face protection
- Wear hearing protection, gloves and sturdy footwear
- Remove the battery before adjustment, cleaning or maintenance
- Fit the guide-bar scabbard during transport and storage
Technical specifications
| Specification | Details |
|---|---|
| Model | STIHL HTA 66 |
| Product type | Fixed-shaft cordless pole pruner |
| Battery system | STIHL AP System |
| Rated voltage | 36 V |
| Maximum voltage | 40 V |
| Mechanical power | 0.85 kW |
| Recommended battery | STIHL AP 200 S |
| Working time with AP 200 S | Up to approximately 42 minutes |
| Working time with AP 300 S | Up to approximately 68 minutes |
| Working time with AP 500 S | Up to approximately 82 minutes |
| Shaft type | Rigid fixed shaft; not telescopic |
| Total length | Approximately 240 cm |
| Indicative working height | Branches up to approximately 5 metres, depending on operator and branch position |
| Guide-bar length | 25 cm / 10 inches |
| Saw chain | STIHL ¼″ P Picco Micro 3 |
| Chain tensioning | Side mounted |
| Chain lubrication | Automatic |
| Motor | EC motor with Constant Power |
| Approximate weight | Approximately 3.6 kg excluding battery, with standard cutting attachment |
| Weather protection | IPX4 splashwater protection |
| Manufacturer part number | LA032000004 |
| GTIN-12 | 886661566303 |
| Package type | Tool only |
Why buy the STIHL HTA 66 from Masseys?
Masseys is a STIHL Authorised Dealer with experience supplying and supporting STIHL cordless machinery.
Buying from Masseys gives you access to:
- Advice on HTA 50, HTA 66, HTA 86 and HTA 135 pole pruners
- Help choosing the correct AP battery and charger
- Genuine STIHL batteries and charging equipment
- Correct replacement chains and guide bars
- Chain oil and protective equipment
- Product setup and operating guidance
- Chain sharpening and workshop support
- Warranty and after-sales assistance
- Local collection and delivery options
Our garden machinery servicing and repairs workshop can assist with inspections, maintenance, chain sharpening and genuine STIHL replacement parts.
For help choosing the correct pole pruner, battery or charger, please contact Masseys before ordering.
Frequently asked questions
Is the STIHL HTA 66 telescopic?
No. It has a fixed 240 cm shaft and cannot be extended or shortened.
How high can the STIHL HTA 66 reach?
STIHL states that it can be used to work on branches at heights of up to approximately five metres. Actual working height depends on the operator, stance and position of the branch.
Does it include a battery and charger?
No. This is a tool-only product. A compatible STIHL AP battery and charger must be purchased separately.
Which battery is recommended?
The STIHL AP 200 S is recommended because it provides a useful balance between runtime and operating weight.
How long does the AP 200 S last?
STIHL publishes a maximum working time of up to approximately 42 minutes. Actual working time depends on branch size, timber condition, chain sharpness and working technique.
Can I use an AP 300 S or AP 500 S?
Yes. They provide longer published working times, but their additional weight increases the total weight held by the operator.
Does the HTA 66 include chain oil?
No. Suitable chain oil is required but must be purchased separately.
What guide bar is fitted?
The current UK tool-only product is supplied with a 25 cm / 10-inch guide bar.
Which saw chain does it use?
It uses a ¼″ P STIHL Picco Micro 3 saw chain. Confirm the exact drive-link count against the fitted guide bar before ordering a replacement.
How much does the HTA 66 weigh?
The complete tool weighs approximately 3.6 kg excluding its battery. The exact operating weight depends on the battery fitted.
Is the HTA 86 more powerful?
No. Both the HTA 66 and HTA 86 have a published mechanical power output of 0.85 kW. The HTA 86’s main advantage is its adjustable 270–390 cm telescopic shaft.
Is it suitable for domestic use?
Yes. Although it uses the professional AP System, STIHL positions it for professional and private tree, orchard and grounds maintenance.
Can it replace a normal chainsaw?
No. It is designed primarily for pruning elevated branches. A suitable rear-handle chainsaw is more appropriate for firewood, log processing and conventional ground-based cutting.
Can it be used in wet weather?
The HTA 66 is IPX4 rated for splashwater protection. It must not be submerged, pressure washed or stored wet.
