Weibang Legacy 48 PRO BBC LV 48cm Rear Roller Lawn Mower

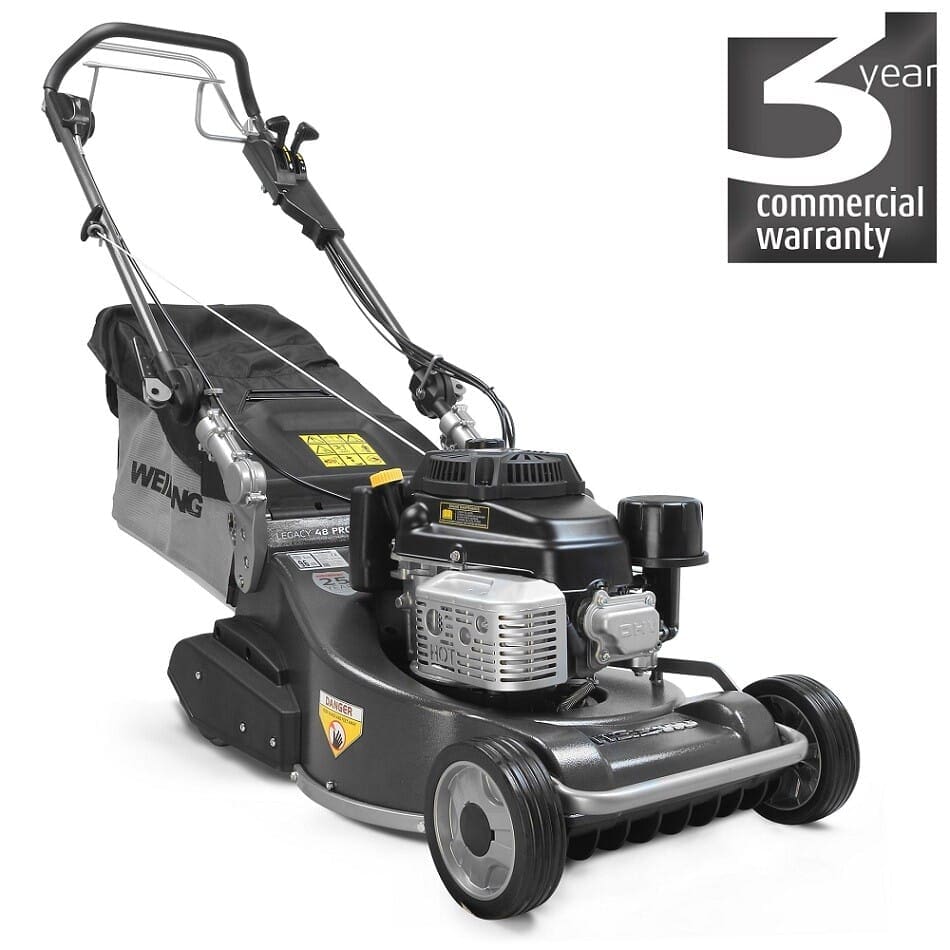

Weibang Legacy 48 PRO BBC LV commercial rear-roller mower

The Weibang Legacy 48 PRO BBC LV is a commercial 48cm self-propelled petrol rear-roller lawn mower designed for professional landscapers, grounds-maintenance teams, estates and demanding formal lawns.

It combines a 196cc Weibang XCV200 low-vibration engine, a PRO three-speed gearbox, a heavy-duty Blade Brake Clutch, an aluminium cutter deck and a split ribbed steel rear roller.

The mower is designed to provide productive grass collection and a clearly defined striped finish on formal lawns, sports pitches and other professionally maintained areas. Its 48cm cutting width provides a practical balance between coverage, access and manoeuvrability.

Browse the complete Weibang lawn mower range, compare other petrol lawn mowers, or view all lawn mowers available from Masseys.

Key features of the Weibang Legacy 48 PRO BBC LV

196cc Weibang XCV200 low-vibration engine

The Legacy 48 PRO BBC LV is powered by a 196cc Weibang XCV200 four-stroke petrol engine with a rated output of 3.5kW at 3,600rpm.

Weibang’s Vibration Control Technology is designed to reduce vibration through the mower and handle system during prolonged operation. The complete mower has a stated vibration level of 3.6m/s².

The engine has a one-litre fuel tank. Always use the correct petrol and engine oil and follow the service intervals in the operator’s manual.

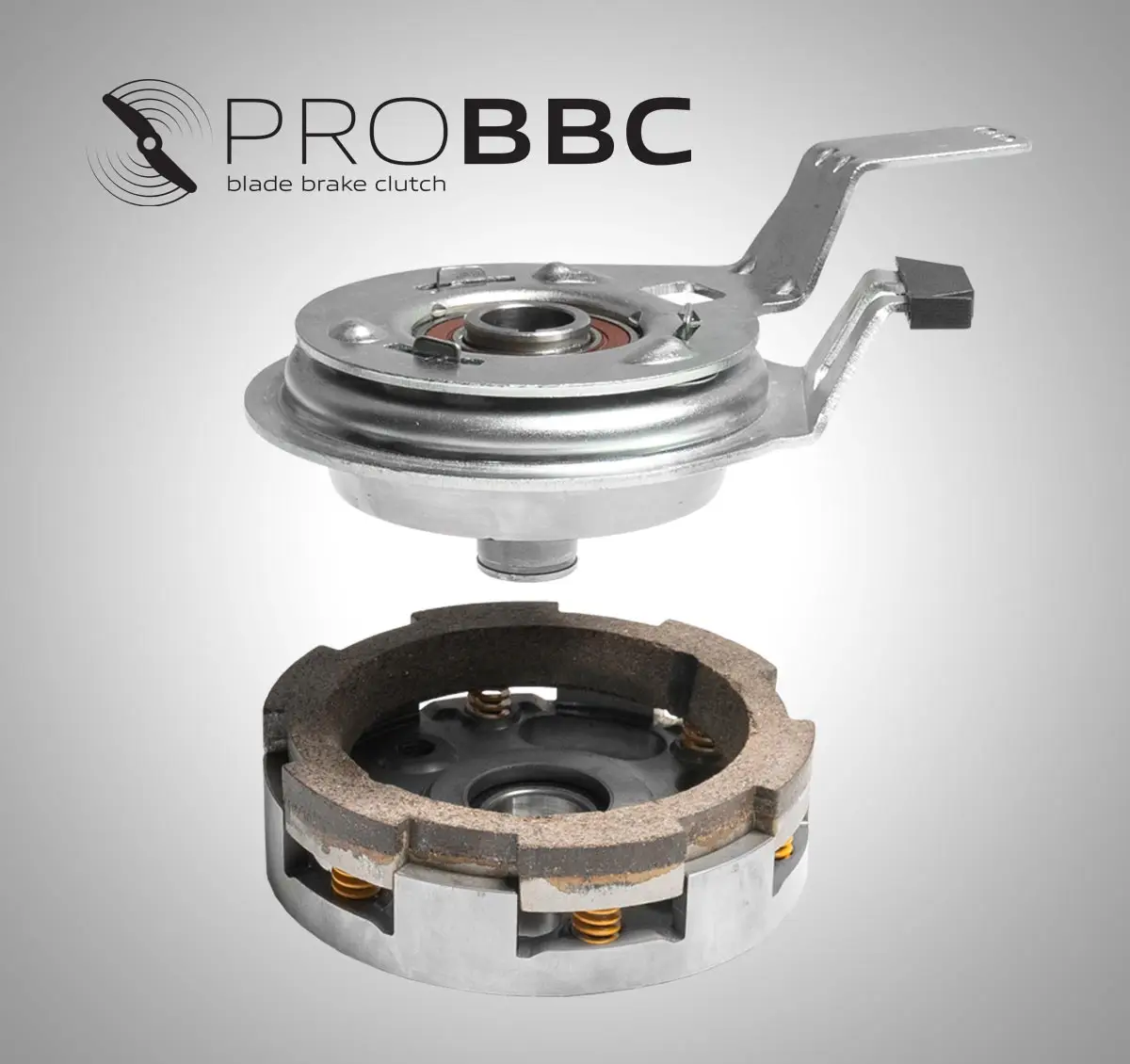

Weibang PRO Blade Brake Clutch

The PRO Blade Brake Clutch, commonly shortened to BBC, allows the cutting blade to be disengaged while the engine remains running.

This is particularly useful when you need to:

• Empty the grass collector
• Cross a paved path or driveway
• Move between separate lawn areas
• Pause while removing an obstacle

Stopping only the blade reduces repeated engine restarts and can improve productivity during professional work.

The cutting blade should always be disengaged before crossing gravel, paving or another non-grass surface.

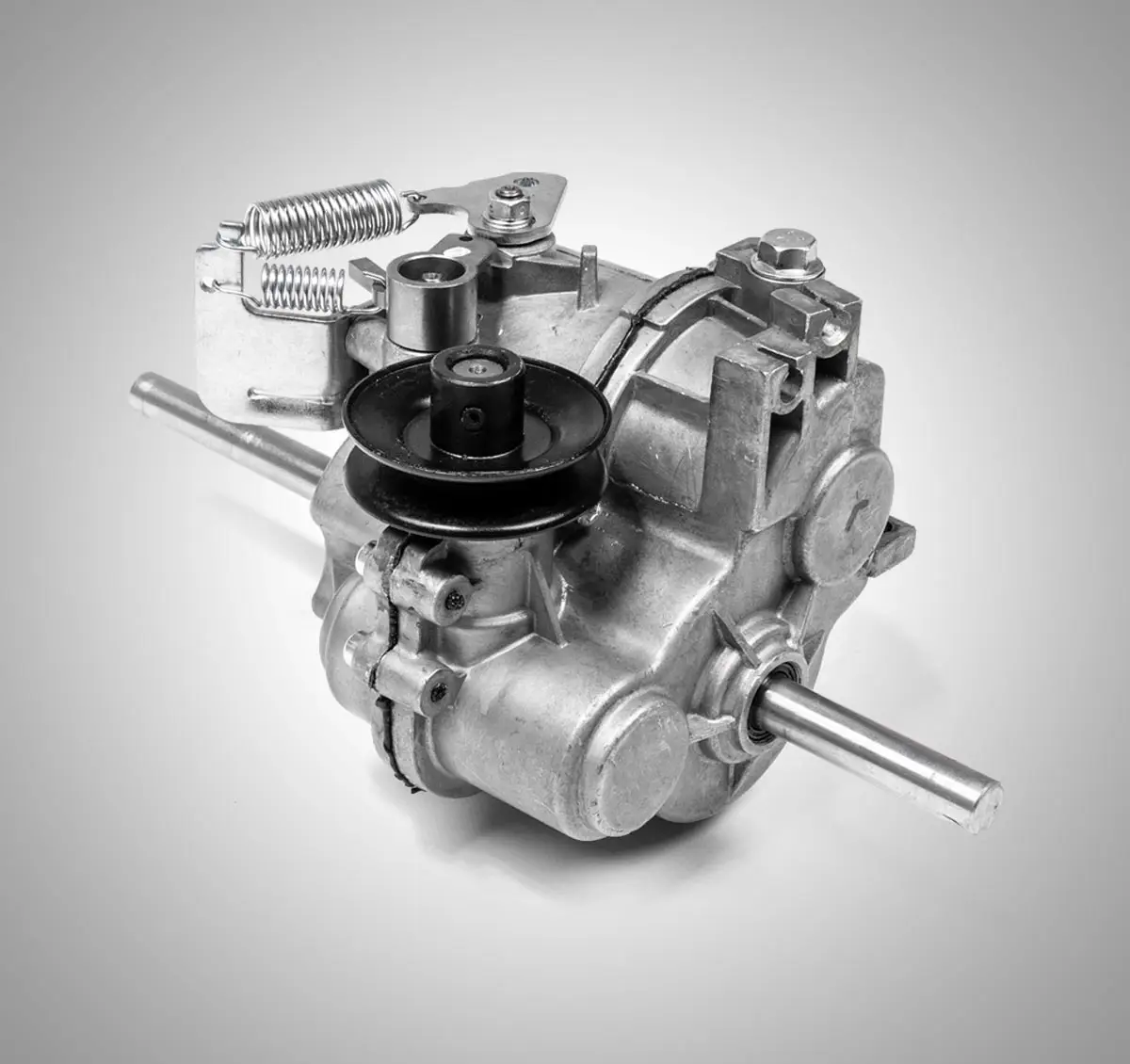

PRO three-speed self-propelled gearbox

The commercial PRO gearbox provides three selectable forward speeds:

• 3km/h: useful for tighter areas, heavier grass or a controlled mowing pace.
• 3.5km/h: a general-purpose speed for routine cutting and collection.
• 4.6km/h: designed for faster coverage of open, regularly maintained ground.

These are three fixed speed selections rather than a continuously variable transmission. This provides repeatable working speeds for professional mowing.

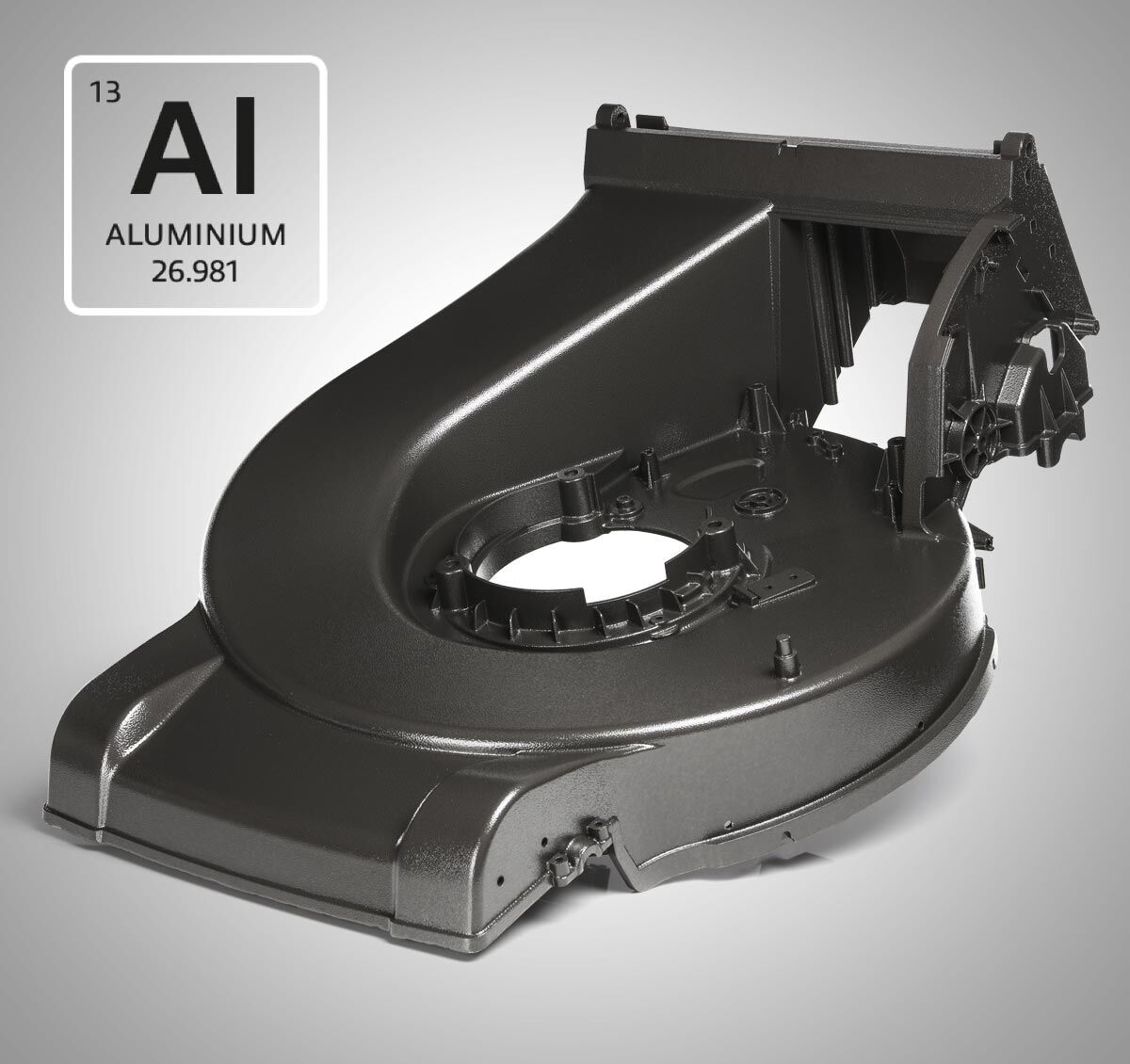

48cm aluminium cutter deck

The 48cm, or approximately 19-inch, aluminium cutter deck is designed to combine productive coverage with manageable access and manoeuvrability.

The deck shape and integrated front air fins support airflow into the cutting chamber, helping move the clippings into the collector.

The aluminium deck has replaceable inner and outer protective components. A steel inner liner protects against stones and other impacts, while external protection helps shield the deck when mowing close to walls and hard edges.

Weibang advertises a 25-year cutter-deck guarantee, subject to the applicable terms and exclusions.

Split ribbed steel rear roller

The heavy-duty split rear roller bends the grass in alternating directions as you mow, producing the traditional light-and-dark striped finish associated with formal lawns.

The two sections can rotate at different speeds when turning, improving manoeuvrability at the end of each pass and helping reduce scuffing of the turf.

The roller ratchet is sealed to reduce the entry of grass, dirt and water, while the roller-chain cover is reinforced for commercial durability.

Eleven cutting heights from 13–67mm

A central spring-assisted lever adjusts the cutting height through 11 positions between 13 and 67mm.

The lower positions are suitable for maintaining a short formal finish in favourable growing conditions. Higher settings can be used for seasonal growth, dry periods or when gradually reducing longer grass.

The spring assistance reduces the effort required to raise and lower the aluminium cutter deck.

Large 72-litre airflow collector

The 72-litre fabric collector reduces the frequency of emptying stops during regular professional mowing.

Airflow fabric helps indicate when the collector is becoming full. A full-width rear handle supports easier emptying without pinching the bag opening.

Keep the collector fabric clean and dry to maintain airflow. Long or wet grass may require a higher cutting position, slower mowing and more frequent emptying.

Collection and rear-discharge operation

The Legacy 48 PRO BBC LV is designed principally for efficient grass collection and a formal striped finish. It can also rear-discharge the clippings when collection is not required.

The mower does not provide a dedicated mulching or side-discharge function. Customers who need multiple clipping-management options should compare a four-wheel Weibang Virtue mower.

Vibration Reduction System and adjustable handles

In addition to the low-vibration XCV200 engine, the mower uses a heavy-duty aluminium handle bracket with an anti-vibration liner to help reduce vibration reaching the operator.

The quick-release handle system offers adjustable working heights and protects the control cables during adjustment and transport.

The control levers operate in replaceable bushes, allowing worn components to be renewed without replacing the complete handle assembly.

Commercial protection and service access

A heavy-duty front bumper protects the deck and front wheels from accidental knocks and also provides a lifting point when repositioning the machine.

The open-back control area provides direct access to cables for adjustment and maintenance. The mower can also be placed into a designated service or storage position.

Always stop the engine, allow it to cool and follow the operator’s manual before cleaning, lifting or servicing the mower.

Is the Weibang Legacy 48 PRO BBC LV right for you?

Choose this mower if:

• You maintain formal lawns, estates, sports pitches or commercial grounds.
• You want a clearly defined striped finish.
• You normally collect the grass clippings.
• You want three repeatable forward-speed settings.
• You frequently empty the collector or move between lawn areas.
• You value being able to stop the blade without stopping the engine.
• You require commercial construction and dealer parts support.
• You have suitable transport, access and storage for a heavy professional mower.

Another mower may be more suitable if:

• You have a small or tightly arranged domestic garden.
• You need a lightweight mower that must be lifted frequently.
• You want continuously variable forward speed.
• You require a dedicated mulching function.
• You need side-discharge capability.
• You do not require a rear roller or striped finish.
• You only mow occasionally and do not need commercial construction.

Comparing Weibang commercial mowers

Legacy 48 PRO BBC LV versus Legacy 56 PRO BBC LV

The Weibang Legacy 56 PRO BBC LV provides a wider 56cm deck for faster coverage of large, open formal areas.

Choose the 48cm model when access, transport and manoeuvrability are important. Choose the 56cm model when maximum output across large open areas is the priority.

Legacy 48 PRO BBC LV versus Virtue 53 SSD BBC LV

The Weibang Virtue 53 SSD BBC LV is a four-wheel commercial mower with shaft drive and multiple clipping options.

Choose the Legacy when a rear roller, formal stripes and high collection performance are the main priorities.

Choose the Virtue when you require a wider four-wheel mower with collection, mulching, rear-discharge and side-discharge flexibility.

Why Masseys recommends the Weibang Legacy 48 PRO BBC LV

Masseys recommends the Legacy 48 PRO BBC LV to professional gardeners and demanding private users who want a commercial rear-roller mower but need greater manoeuvrability than a wider 56cm machine provides.

The 48cm aluminium deck is a useful size for formal lawns with gates, borders and landscaping features. The split rear roller creates a strong striped finish, while the three-speed gearbox allows the operator to select a repeatable pace for changing grass conditions.

The PRO Blade Brake Clutch is particularly valuable when the collector must be emptied frequently or the mower regularly moves between separate lawn areas. It allows the blade to stop without repeatedly shutting down and restarting the engine.

This is not normally Masseys’ first recommendation for a small garden, occasional domestic mowing or an operator who needs a lightweight machine. Customers who require mulching or side discharge should instead consider a four-wheel Weibang Virtue model.

For advice based on your workload, access, transport arrangements and required finish, contact the Masseys garden machinery team before ordering.

Weibang Legacy 48 PRO BBC LV technical specifications

Weibang warranty

The Legacy 48 PRO BBC LV has a standard two-year domestic warranty when registered in accordance with Weibang’s conditions.

The domestic warranty can be extended up to five years when the mower is serviced annually by an authorised Weibang dealer and the required records are maintained.

For professional use, the standard commercial warranty is one year. Qualifying aluminium-deck PRO and Legacy machines can receive up to three years’ commercial coverage through annual authorised servicing, subject to Weibang’s full warranty conditions.

Weibang also advertises a 25-year guarantee on the aluminium cutter deck, subject to the applicable terms and exclusions.

Please confirm the warranty applying to your intended type and frequency of use with Masseys before ordering.

Buying from Masseys

Masseys supplies Weibang garden machinery from its Woodville store near Swadlincote, Derbyshire.

Our garden machinery team can provide advice on model selection, access, transport, operation and the finish you need to achieve. Machine setup and local delivery are available subject to current arrangements and postcode.

For ongoing support, visit our garden machinery servicing and repairs page.

You can also browse Aspen fuel and our wider range of machinery oil and fuel products.

Frequently asked questions

Is the Weibang Legacy 48 PRO BBC LV a commercial mower?

Yes. It is part of Weibang’s professional Legacy rear-roller range and is designed for landscapers, grounds-maintenance teams, estates and demanding formal lawn care.

What does BBC mean?

BBC means Blade Brake Clutch. It allows the cutting blade to stop while the engine continues running.

When is the Blade Brake Clutch useful?

It is useful when emptying the collector, crossing a path, moving between separate lawn areas or pausing to remove an obstacle.

What does LV mean?

LV means low vibration. The mower combines an XCV200 engine with Vibration Control Technology and a vibration-reducing handle system.

Is the mower self-propelled?

Yes. It has three selectable forward speeds of 3, 3.5 and 4.6km/h.

Does it create lawn stripes?

Yes. Its split ribbed steel rear roller bends the grass in alternating directions to create a defined striped finish.

What is the cutting width?

The mower has a 48cm, or approximately 19-inch, cutting width.

How many cutting heights are available?

There are 11 central, spring-assisted cutting positions between 13 and 67mm.

How large is the grass collector?

The mower has a 72-litre airflow-fabric collector.

Can the Legacy 48 PRO BBC LV mulch grass?

No. The mower is designed principally for collection and formal striping. It can rear-discharge but does not provide dedicated mulching or side discharge.

What is the difference between the 48cm and 56cm Legacy models?

The 48cm mower is easier to manoeuvre, transport and use through restricted access. The 56cm model covers more ground per pass and is better suited to large open formal areas.

What warranty is included?

The mower has a standard two-year domestic warranty, extendable to five years through qualifying annual servicing. Commercial coverage can extend to three years, subject to registration, servicing and Weibang’s full conditions.

Can Masseys service the mower?

Yes. Masseys provides machinery servicing, repairs and warranty support from its Woodville workshop. Contact the team to confirm current workshop availability and lead times.
