The STIHL SGA 85 cordless sprayer is a professional battery-powered backpack sprayer built for consistent, controlled application across larger working areas. Its 17-litre tank, adjustable 1–6 bar working pressure and comfortable carrying system make it particularly well suited to horticulture, agriculture, fruit growing, viticulture, estates and professional grounds maintenance.
Unlike a conventional manual backpack sprayer, the SGA 85 uses a battery-powered pump to maintain spraying pressure. This removes the need for repeated hand pumping and helps deliver a more consistent application throughout the job.
The SGA 85 is part of the professional STIHL AP Battery System. It is supplied as a tool only unless a battery-and-charger package is specifically selected.
STIHL SGA 85 at a glance
- Best suited to: professional spraying across larger areas
- Typical users: landscapers, growers, estates, grounds teams, farmers and contractors
- Maximum filling capacity: 17 litres
- Working pressure: adjustable from 1 to 6 bar
- Battery platform: STIHL 36V AP System
- Recommended battery: STIHL AP 200 S
- Maximum working time: up to 1,000 minutes with an AP 200 S battery
- Weight: 6.2kg without battery and with the tank empty
- Weather protection: IPX4 splash-water protection
- Battery and charger: not included unless selected as part of a package
Professional cordless spraying without manual pumping
The STIHL SGA 85 replaces the manual pumping action required by a conventional backpack sprayer with an electrically powered pump. Once switched on, the system maintains spraying pressure while the operator controls the flow from the spray gun.
This is particularly useful when treating larger areas, where frequent manual pumping can become tiring and may produce uneven pressure. The battery-powered system helps maintain a more consistent output from the start of the job to the end.
Adjustable pressure from 1 to 6 bar
Working pressure can be adjusted between 1 and 6 bar using the rotary control on the sprayer. A pressure gauge on the spray gun allows the operator to monitor the selected pressure while working.
The variable pressure setting allows the SGA 85 to be adapted to different approved products, nozzle configurations and application requirements. Lower pressure can be selected for controlled treatment, while higher pressure provides additional output where the task requires it.
Always follow the instructions, approved application rate and safety requirements supplied by the manufacturer of the liquid being used.
Large 17-litre tank
The 17-litre maximum filling capacity reduces the number of stops required when treating larger sites. It provides considerably more working capacity than a small hand-held sprayer while retaining the mobility of a backpack machine.
A filling strainer helps prevent larger particles from entering the tank, while additional filtration within the system helps protect the pump and spray attachment from blockages.
Comfortable carrying system
A full sprayer can become heavy, so the SGA 85 uses an individually adjustable carrying system designed to distribute the load across the operator’s back and shoulders.
The padded backrest and adjustable straps improve comfort during longer jobs. The sprayer also incorporates a carrying handle for lifting and short-distance transport when the tank is empty.
Controlled spraying from the lance
The spray gun includes a pressure gauge, control handle and lockable trigger. This gives the operator direct control over when liquid is released and makes it easier to maintain a steady application while moving through the working area.
The standard machine is fitted with a brass hollow-cone nozzle. STIHL also offers additional spraying accessories and nozzle options for different approved applications.

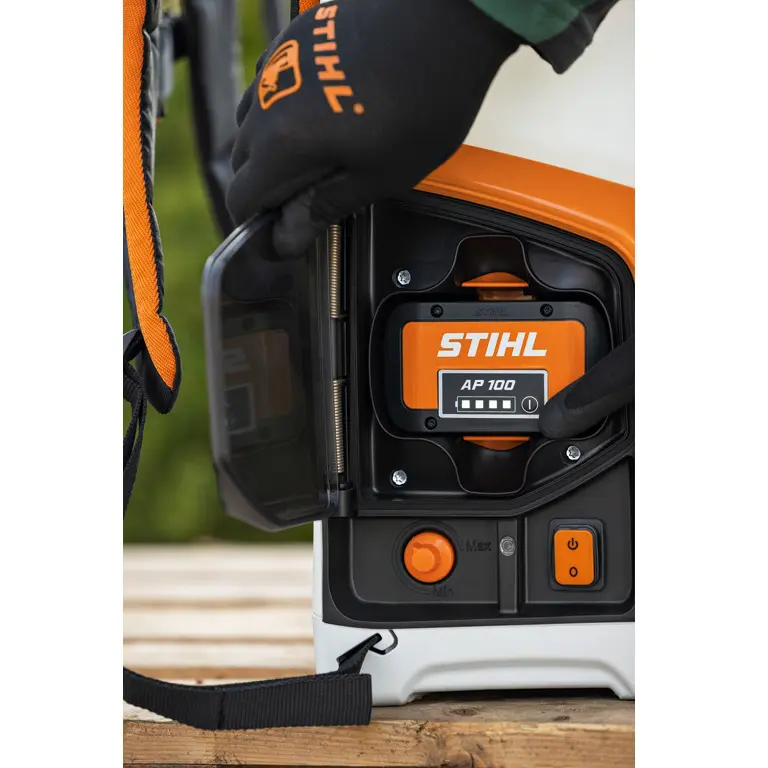

Professional STIHL AP System power
The SGA 85 operates on the professional 36V STIHL AP System. The same compatible battery platform can power a wide range of STIHL professional cordless chainsaws, hedge trimmers, brushcutters, blowers, lawn mowers and other equipment.
Customers who already own compatible AP System tools may therefore be able to use an existing battery and charger, reducing the cost of adding the SGA 85 to their equipment fleet.
Browse the complete STIHL AP System range at Masseys.
Which battery should I use with the STIHL SGA 85?
STIHL currently recommends the STIHL AP 200 S battery for the SGA 85. It provides a practical balance between working weight, capacity and runtime.
STIHL states a maximum working time of up to 1,000 minutes with the AP 200 S. Actual runtime will vary according to the selected pressure, operating conditions, temperature, battery condition and working method.
For regular professional use, we recommend pairing the AP 200 S with an AL 301 or faster compatible charger. View the available STIHL battery chargers at Masseys.
Suitable applications
The STIHL SGA 85 is primarily intended for professional treatment in areas such as:
- Horticultural sites and nurseries
- Orchards and fruit-growing operations
- Vineyards and viticulture
- Agricultural land and crop-growing areas
- Forestry and plantation management
- Large estates and landscaped grounds
- Professional grounds maintenance
Only use liquid products that are approved by their manufacturer for application through a pressurised sprayer. Always follow the product label, dilution rate, personal protective equipment requirements and relevant regulations.
Why Masseys recommends the STIHL SGA 85
Masseys recommends the STIHL SGA 85 for professional users who need more capacity, pressure control and consistency than a manually pumped backpack sprayer can comfortably provide.
Its main advantage is not simply that it is cordless. The battery-powered pump removes the repeated pumping action and maintains a controlled pressure throughout the application. This can reduce operator fatigue and help produce a more even treatment across larger working areas.
We particularly recommend the SGA 85 when:
- A 17-litre tank is needed to reduce refill stops
- Consistent pressure is important across a larger site
- The machine will be used regularly rather than occasionally
- The operator already owns STIHL AP System batteries
- Low machine noise and no direct exhaust emissions are beneficial
- Professional dealer advice, spare parts and after-sales support are important
Is the STIHL SGA 85 the right sprayer for you?
Choose the SGA 85 when you need a high-capacity professional sprayer, adjustable pressure up to 6 bar and the convenience of the STIHL AP battery platform.
For larger domestic gardens, small estates or less intensive work, the STIHL SGA 60 cordless sprayer may provide a more economical alternative within the STIHL AK System.
For occasional applications where battery power is not required, browse our complete range of garden and backpack sprayers.
STIHL SGA 85 technical specifications
| Product | STIHL SGA 85 cordless backpack sprayer |
|---|---|
| Battery system | STIHL AP System |
| Rated voltage | 36V |
| Recommended battery | STIHL AP 200 S |
| Maximum filling capacity | 17 litres |
| Working pressure | Adjustable from 1 to 6 bar |
| Maximum working pressure | 6 bar |
| Weight without battery | 6.2kg with the container empty |
| Maximum filled weight | Approximately 25kg including battery and liquid |
| Maximum runtime with AP 200 S | Up to 1,000 minutes |
| Standard nozzle | Brass hollow-cone nozzle |
| Pressure monitoring | Pressure gauge on spray gun |
| Ingress protection | IPX4 splash-water protection |
| Sound pressure level | 66dB(A) |
| STIHL part number | 4854 011 7005 |
| Battery and charger included | No, unless selected as part of a package |
What is supplied with the STIHL SGA 85?
The standard tool-only machine includes the STIHL SGA 85 sprayer, carrying system, hose, spray gun, lance and standard nozzle.
A battery and charger are not included with the tool-only version. Check the selected product variation before ordering to confirm exactly what is included.
Using the STIHL SGA 85 safely
Plant-protection products and other spray liquids can present serious risks when handled incorrectly. Read the STIHL instruction manual and the complete product label before mixing or spraying any liquid.
- Wear the personal protective equipment specified on the product label
- Use only products approved for pressurised sprayers
- Do not spray towards people, animals or unprotected property
- Avoid spraying in windy conditions
- Do not exceed the stated dilution or application rate
- Rinse the tank, hose, gun, lance and nozzle after use
- Dispose of residual liquid and rinsing water responsibly
- Remove the battery before cleaning, maintenance or transport
Frequently asked questions
Does the STIHL SGA 85 include a battery and charger?
The standard SGA 85 is supplied as a tool only. A battery and charger are not included unless the product variation specifically states that they are part of the package.
Which battery does the STIHL SGA 85 use?
The SGA 85 uses a compatible 36V STIHL AP System battery. STIHL currently recommends the AP 200 S for this machine.
How long does the STIHL SGA 85 run on an AP 200 S battery?
STIHL states a maximum working time of up to 1,000 minutes with the AP 200 S. Actual runtime depends on pressure, operating conditions, temperature and battery condition.
How much liquid does the STIHL SGA 85 hold?
The SGA 85 has a maximum filling capacity of 17 litres. Do not fill the tank beyond the upper filling mark.
Can the STIHL SGA 85 spray weedkiller?
It can apply an herbicide when that particular product is approved for use in a pressurised backpack sprayer. Always follow the herbicide manufacturer’s label, application rate and protective-equipment instructions.
Can the spraying pressure be adjusted?
Yes. The working pressure can be adjusted between 1 and 6 bar using the rotary control. A pressure gauge on the spray gun allows the operator to monitor the pressure.
Can the STIHL SGA 85 be used in wet weather?
The machine has IPX4 splash-water protection. However, the suitability of spraying in damp or wet conditions depends on the product being applied, the site conditions and the instructions on the chemical label.
Is the SGA 85 suitable for domestic gardens?
It can be used by a knowledgeable landowner, but it is primarily designed for professional and larger-scale work. For less intensive use, the STIHL SGA 60 or a manual backpack sprayer may be more appropriate.
Buy the STIHL SGA 85 from Masseys
Masseys is an authorised STIHL dealer based in Woodville, Swadlincote, Derbyshire. We can help you choose the correct AP battery, charger and sprayer configuration for your workload.
Shop the STIHL SGA 85 online or visit Masseys for professional product advice and after-sales support. You can also browse our complete range of STIHL garden machinery.
