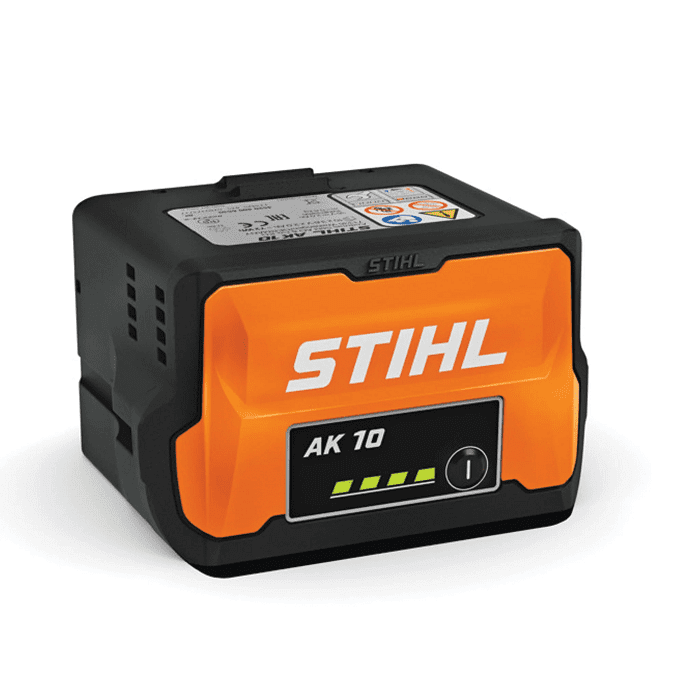

The STIHL AK 10 is a compact 36V, 2.0Ah lithium-ion battery with 72Wh of energy capacity. Weighing just 0.8kg, it is particularly well suited to lighter STIHL AK System tools where low overall machine weight and easy handling are priorities.
The AK 10 includes an integrated LED charge-level indicator and works with the STIHL AL 101, AL 301 and AL 501 battery chargers. This product includes one STIHL AK 10 battery only. A charger and cordless tool are not included.
STIHL AK 10 battery at a glance
| Battery system | STIHL AK System |
|---|---|
| Battery technology | Lithium-ion |
| Rated voltage | 36V |
| Rated capacity | 2.0Ah |
| Energy content | 72Wh |
| Battery weight | 0.8kg |
| Charge indicator | Integrated LED display |
| Compatible chargers | STIHL AL 101, AL 301 and AL 501 |
| What is included? | One STIHL AK 10 battery |
Why choose the STIHL AK 10 battery?
Compact and lightweight
At approximately 0.8kg, the AK 10 keeps compatible tools light and comfortable to use. It is a practical choice for routine garden maintenance, shorter working sessions and users who prefer the lowest possible tool weight.
Consistent cordless performance
STIHL intelligent battery management helps the battery deliver consistent power as its charge level falls. This provides predictable tool performance throughout the working session rather than a gradual loss of power as the battery discharges.
Integrated charge indicator
Press the button on the battery to view the remaining charge through the built-in LED indicator. This makes it easy to check whether the battery needs charging before beginning a job.
Suitable for year-round garden maintenance
The AK 10 is designed to operate in cold conditions down to approximately -20°C, making it suitable for seasonal garden work throughout the year. Battery storage and charging instructions in the STIHL user manual should always be followed.
Which STIHL tools are best matched to the AK 10?
The AK 10 fits the STIHL AK System, but battery suitability depends on the power requirements of the individual machine. It is best matched to lighter tools and shorter working sessions.
Good AK 10 pairings include:
- STIHL FSA 50 cordless strimmer
- STIHL HSA 50 cordless hedge trimmer
- STIHL BGA 50 cordless leaf blower
- STIHL HLA 56 long-reach hedge trimmer
- STIHL RMA 235 cordless lawn mower
Although the AK 10 can be used with a wider range of AK System machines, several higher-demand tools may operate with reduced performance or provide only a short working time. For larger gardens, longer sessions or more powerful machines, an AK 20 or AK 30 S will usually be the more practical choice.
Important: STIHL states that the AK 10 must not be used with the MSA 80 chainsaw. Always check the recommended battery for your particular STIHL tool before ordering.
STIHL AK 10 charging times
Approximate charging times depend on the STIHL charger used:
| STIHL charger | Charge to 80% | Charge to 100% |
|---|---|---|
| AL 101 | Approximately 70 minutes | Approximately 95 minutes |
| AL 301 | Approximately 25 minutes | Approximately 40 minutes |
| AL 501 | Approximately 25 minutes | Approximately 40 minutes |
Browse our STIHL battery chargers to select the correct charger for your battery setup.
Should you choose the AK 10, AK 20 or AK 30 S?
Choose the AK 10 when minimum weight, easy handling and shorter domestic jobs are your priorities.
Choose the AK 20 when you need a better balance between battery weight, working time and compatibility across a wider selection of AK System tools.
Choose the AK 30 S for longer working sessions, lawn mowers and higher-demand AK System machines where maximum available battery capacity is more important than keeping the tool as light as possible.
Explore the complete STIHL AK System range or contact Masseys for help matching a battery to your existing STIHL tool.
Masseys expert recommendation
Masseys recommends the STIHL AK 10 for customers who want a light battery for routine trimming, hedge cutting, blowing or small-lawn maintenance. It is particularly useful where reducing the total weight of the machine is more important than achieving the longest possible runtime.
For demanding tools or extended sessions, moving up to an AK 20 or AK 30 S can provide a more practical working experience and reduce the need for frequent recharging.
What is included?
- 1 × STIHL AK 10 36V 2.0Ah battery
A battery charger and cordless tool are not included.
Frequently asked questions
Does the STIHL AK 10 fit every STIHL AK System tool?
The AK 10 is part of the STIHL AK System, but it is not the recommended battery for every AK machine. It provides full performance in a selection of lighter tools, while some more demanding machines may deliver reduced performance or a short working time. STIHL states that it cannot be used with the MSA 80 chainsaw.
Which charger works with the STIHL AK 10?
The AK 10 can be charged using the STIHL AL 101, AL 301 or AL 501 charger. The AL 301 and AL 501 provide considerably faster charging than the standard AL 101.
How long does the STIHL AK 10 take to charge?
Using an AL 101 charger, it takes approximately 70 minutes to reach 80% and 95 minutes to reach 100%. With an AL 301 or AL 501 charger, it takes approximately 25 minutes to reach 80% and 40 minutes to reach 100%.
How long will the AK 10 run?
Runtime varies according to the tool, workload, operating speed, material being cut or moved, temperature and battery condition. The AK 10 is primarily intended for lighter tools and shorter domestic jobs. Choose an AK 20 or AK 30 S when longer runtime is required.
Is a charger included with this battery?
No. This listing is for one STIHL AK 10 battery only. A suitable STIHL AL-series charger must be purchased separately unless you already own one.
Can I replace an AK 10 with an AK 20 or AK 30 S?
In many STIHL AK System tools, an AK 20 or AK 30 S can be used to provide a longer working time. The larger battery will add some weight, so the best option depends on the machine and the type of work being completed. Always check the battery recommendation for your particular STIHL model.
Buy the STIHL AK 10 battery from Masseys
Masseys is an authorised STIHL dealer based in Woodville, near Swadlincote. Our team can help you choose the correct STIHL battery, charger and cordless tool combination for your garden and expected working time.
