Description

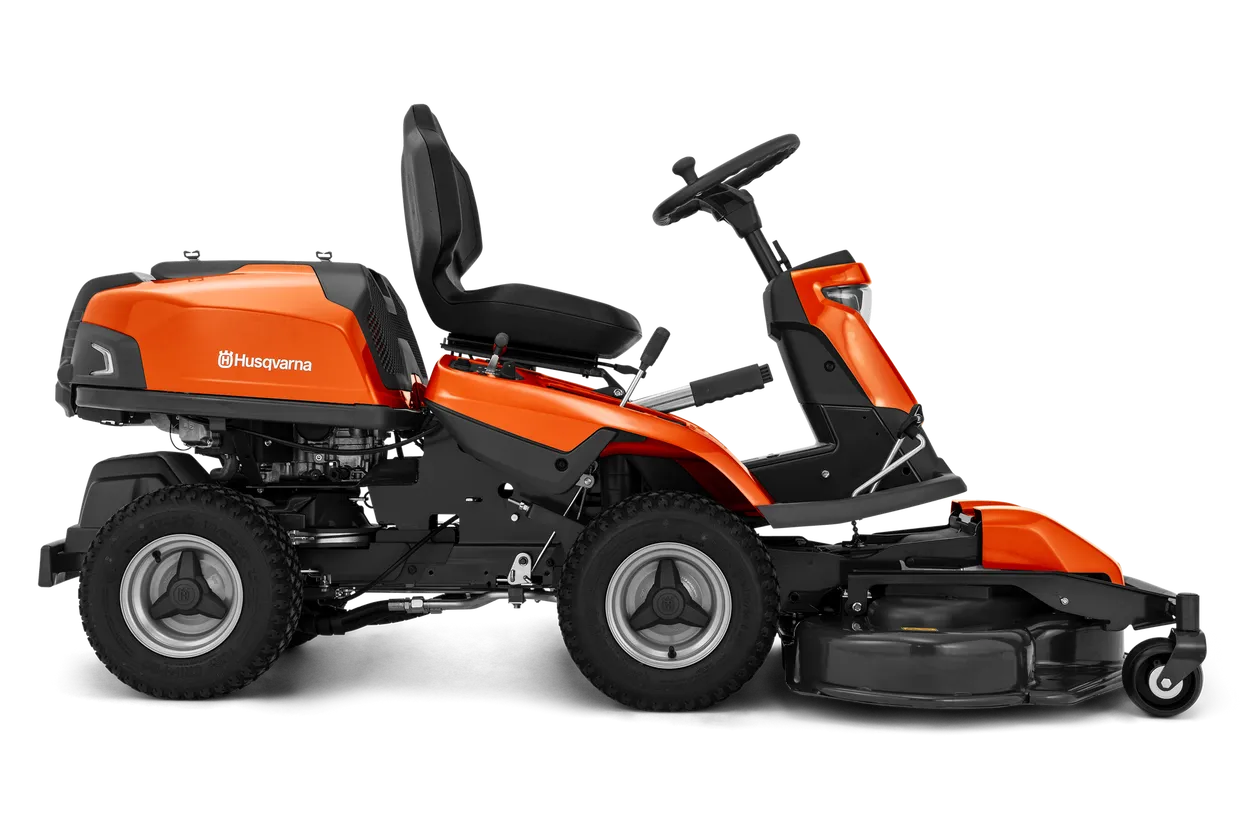

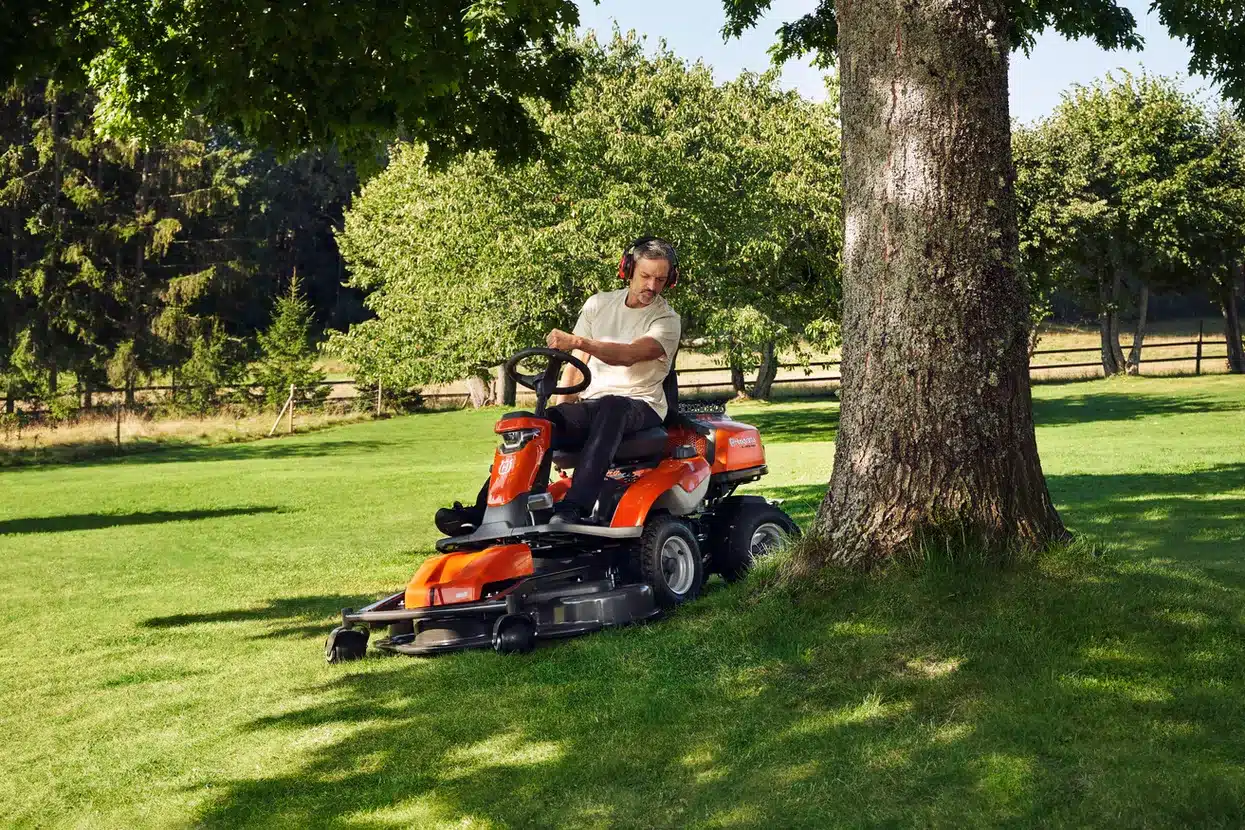

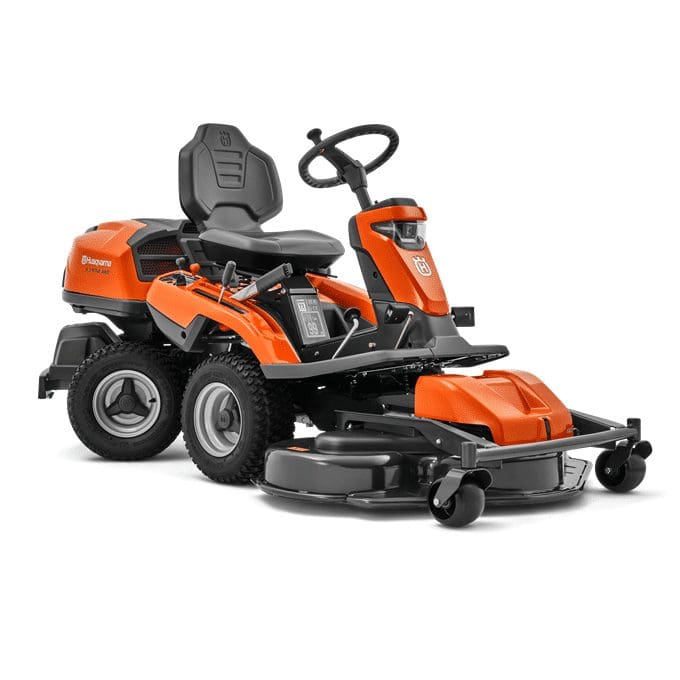

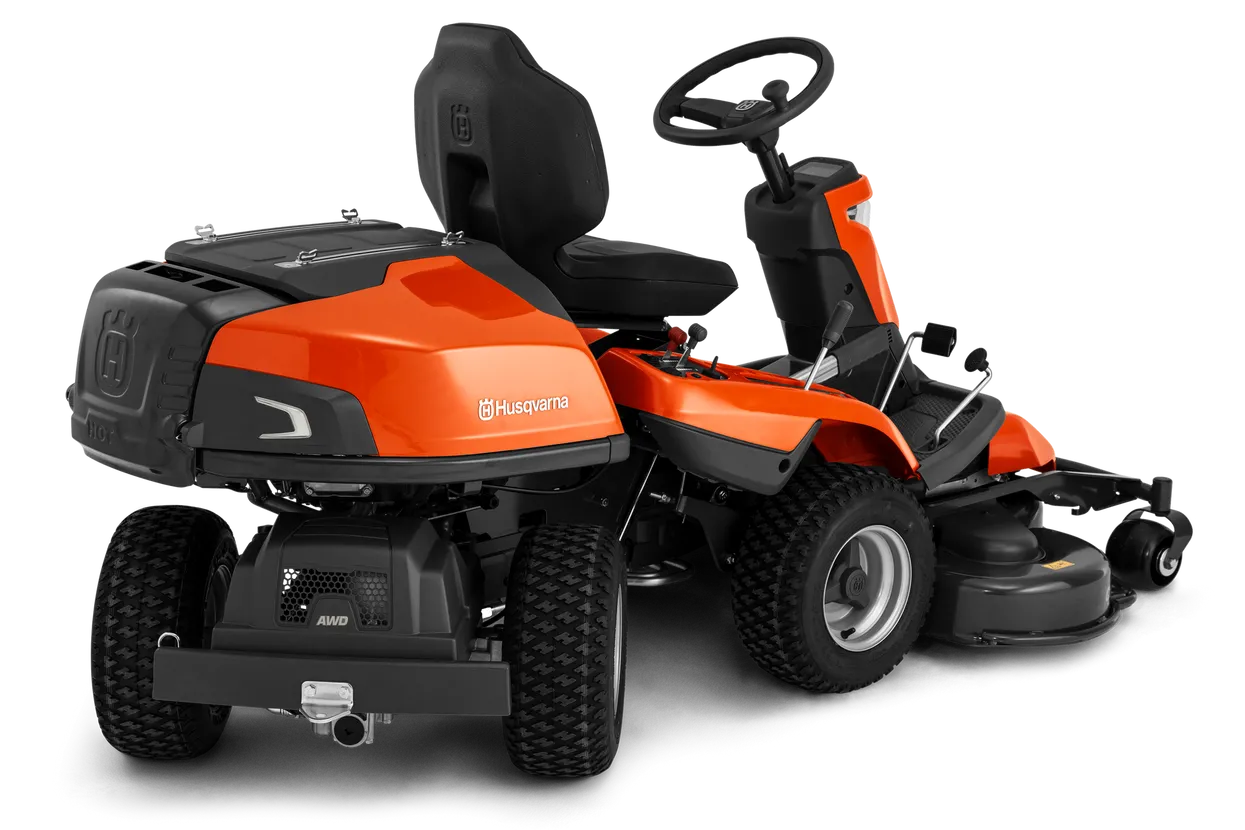

Husqvarna R316TsX AWD Rider
The Husqvarna R316TsX AWD Rider is a hugely capable and flexible Husqvarna Rider with power steering, a powerful V-twin engine and a choice of cutting decks, BioClip® (mulching) and rear ejection. Equipped with X:tra efficiency, an intuitive display, dual headlights and Bluetooth connectivity with which you easily monitor your rider with the Husqvarna Connect app.
-
Motor/engine manufacturerKawasaki -
3100 rpm
-
BioClip®/Rear discharge
-
94-112 cm
Features
Want to take a closer look? Learn more about the product in depth by exploring its design and features.
Unique articulated steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
HMI Display
The intuitive display communicates with the driver through visual symbols and warning sounds, assists in handling and gives real time data and warnings.
Adjustable steering wheel
For greater ergonomics and comfort a telescopic steering column lets the steering wheel height to be adjusted.
Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.
Technical
Engine
Motor/engine manufacturer
Kawasaki
Engine name
FS481V
Net power at preset rpm Energy
9.8 kW
Net power at preset rpm
3100 rpm
Cylinder displacement
603 см³
Cylinders
2
Engine cooling
Air
Power/fuel type
Gasoline
Fuel tank volume (with reserve)
12 l
Engine lubrication type
Full pressure
Oil filter
Yes
Exhaust emissions (CO2 EU V)
851 g/kWh[1]
Battery
Battery type
Lead/Acid
Battery capacity
24 Ah
Battery pack weight
15.432 lbs
Cutting deck
Uncut circle
30 cm
Cutting width, min
94 cm
Cutting width, max
112 cm
Cutting deck type
Stamped
Cutting deck material
Steel
Cutting methods
BioClip®/Rear discharge
Cutting height max
75 mm
Cutting height min
25 mm
Blade engagement
Automatic
Blades
3 pcs
Powder-coated cutting deck
Yes
Dimensions
Tyre dimensions, front
170/60-8
Tyre dimensions, rear
170/60-8
Wheelbase
88.7 cm
Ground clearance
85 mm
Base machine, length
202 cm
Base machine, width
89 cm
Base machine, height
115 cm
Weight
248 kg
Gross weight towed
125 kg[2]
Drive system
Transmission type
Hydrostatic AWD
Transmission manufacturer
Kanzaki
Drive method
Pedal-operated
Speed forward max
9.5 km/h
Speed forward min
0 km/h
Speed reverse max
9.5 km/h
Speed reverse min
0 km/h
Transmission model
K574
Equipment
Hour meter type
Digital with pre-programmed service intervals
Seat material
PU
Seat suspension
Yes
Seat back height
High
Foldable seat
Yes
Steering wheel type
Comfort
Parking brake, type
Disc
Sound and Noise
Sound pressure level at operators ear
84 dB(A)
Sound power level, measured
98 dB(A)
Sound power level, guaranteed (LWA)
99 dB(A)
Vibration
Vibration level steering wheel
2.5 m/s²
Vibration level seat
0.7 m/s²
