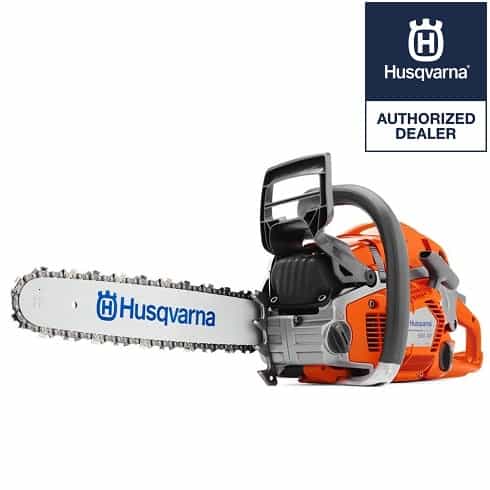

Husqvarna 560XP Chainsaw

Husqvarna 560XP Chainsaw

The Husqvarna 560XP chainsaw has has the option of a 15 inch or 18 inch bar and been designed for professional forestry use. It is one of the new ground breaking chainsaw from Husqvarna.

• Professional
• 15 or 18 inch bar
• Engine – 59.8cc
• Power – 3.5kW

The Husqvarna 560XP has a 59.8 cc engine that produces 3.5 kW / 4.7 hp power output and weighs only 5.6 kg without the bar and chain. It features and X-Torq engine that reduces fuel consumption by up to 20 percent and emissions by up to 75 percent over conventional 2 stroke engines without the compromise of power!
Just as a conventional two-stroke engine, the air/fuel mix enters the crankcase as normal. However, in Husqvarna’s X-TORQ engine, there is a second stream of unmixed, cleaner air moving through the piston and entering the transfer ports at the upper end. This unmixed, cleaner air then becomes the first element that enters the cylinder.

The chainsaw also features Husqvarna AutoTune – an automatic engine management system that ensures optimal performance by compensating for air filter deterioration, fuel mixture, altitude and weather conditions. The chainsaw does have Husqvarna RevBoost – this system delivers rapid acceleration and high chain speeds for superb limbing performance.

The 560XP has an air purge for easier starting and a Husqvarna LowVib system – an anti-vibration system that delivers 2.7/3.2 m/s2 (F/R) on this chainsaw.

At Masseys, we will assemble and start your chainsaw as well as show you how to operate it. See all of our Husqvarna chainsaws.

Features

X-Torq®

Deliver lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.

AutoTune

AutoTune gives optimal engine performance throughout automatic engine setting.No time spent on carburettor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter.

Flip-up tank cap

The flip-up tank cap is easy to open and close when refueling.

RevBoost™

Rapid acceleration and higher chain speed for best limbing performance.

Air Injection

Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.

Adjustable oil pump

Adjustable oil pump makes it easy to set the chain lubrication according to your needs.

LowVib®

Effective anti-vibration dampeners absorb vibration, sparing the user’s arms and hands.

Quick-release air filter

Facilitates cleaning and replacement of the air filter.

Combined choke/stop control

Combined choke/stop control allow for easier starting and reduce the risk of engine flooding.

Magnesium crankcase

Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.

Side-mounted chain tensioner

Side-mounted chain tensioner makes chain adjustment quick and easy.

Air filter cover

Quick release cover saves time when cleaning or changing spark plug.

Snap-lock cylinder cover

Snap-lock cylinder cover saves time when changing spark plugs and cleaning.

Three-piece crankshaft

Forged three-piece crankshaft for maximum durability for the toughest applications.

Slimmed-down design

Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.

Felling marks

Distinct, coloured felling marks for better felling precision.

Visible fuel level

Transparent fuel indicator makes it easy to check fuel level.

Smart Start®

The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40 percent.

Inertia chain brake

Effective inertia-activated chain brake.

Fuel pump

Fuel pump designed for easy starting.

Retained bar nuts

The retaining function prevents loosing the bar nuts.

Specification

Engine: 59.8 cc
Power Output: 3.5kW / 4.7 hp
Equivalent vibration level (ahv , eq) front / rear handle 2.7/3.2 m/s²
Weight (excl. cutting equipment) 5.6 kg
Sound pressure level at operators ear 106 dB(A)
Sound power level, guaranteed (LWA) 118 dB(A)
Chain pitch .325″
Warranty: 2 year commercial
