Honda HRD 536 QX 53cm Rear Roller Mower

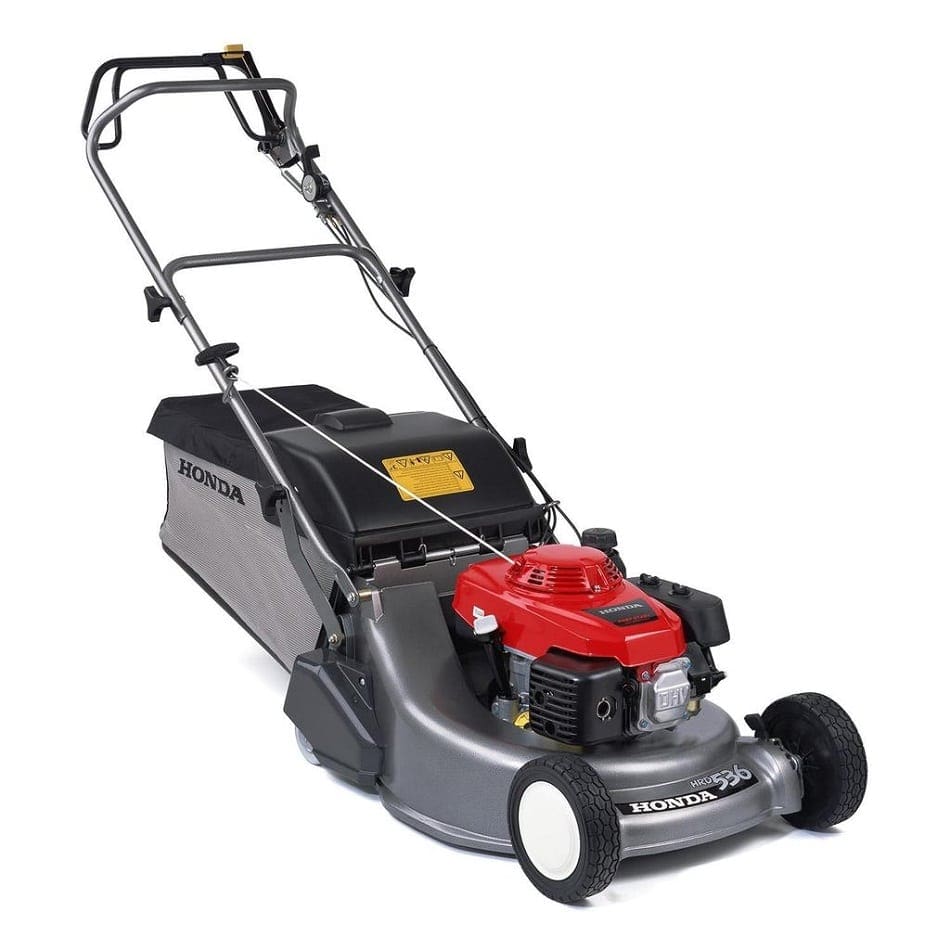

Honda HRD 536 QX petrol rear-roller lawn mower

The Honda HRD 536 QX is a professional-specification, self-propelled petrol lawn mower for large formal lawns, demanding domestic use and professional mowing applications.

Its 53cm cast-aluminium cutter deck provides strong, corrosion-resistant construction, while the rear roller creates the traditional striped finish associated with formal lawn care.

A 163cc Honda GXV160 OHV engine powers both the rotary cutting blade and the fixed-speed self-propelled drive. Honda Roto-Stop® allows the cutting blade to be disengaged while the engine remains running.

Honda HRD 536 QX at a glance

• Manufacturer: Honda
• Model: HRD 536 QX
• Product type: self-propelled petrol rear-roller lawn mower
• Best suited to: large formal lawns and demanding regular use
• Suggested lawn area: up to approximately 1,800m², subject to layout and conditions
• Cutting width: 53cm / 21in
• Engine: Honda GXV160 OHV four-stroke
• Engine displacement: 163cc
• Rated output: approximately 2.7kW at 2,800rpm
• Drive: single-speed self-propelled
• Forward speed: approximately 1.2m/s
• Blade control: Honda Roto-Stop
• Cutter deck: cast aluminium
• Rear roller: yes
• Cutting heights: five positions from 14–52mm
• Grass collector: 83 litres
• Mulching: no
• Starting system: recoil start
• Dry weight: approximately 53.5kg

Is the Honda HRD 536 QX right for you?

Choose the HRD 536 QX if:

• You maintain a large formal lawn
• You want a wide 53cm cut to reduce the number of mowing passes
• You want a traditional striped finish from a rear roller
• You prioritise cast-aluminium deck construction
• You prefer the simplicity of a consistent fixed drive speed
• You want to stop the blade without repeatedly stopping the engine
• You primarily collect grass rather than mulch it
• You require a mower suitable for demanding or professional use

Consider another mower if:

• You want continuously variable walking speed
• You want to mulch grass
• You need a lightweight mower that is regularly lifted into a vehicle
• Your garden has narrow gates, confined passages or many tight obstacles
• You require push-button electric starting
• You want Honda’s heaviest-duty shaft-drive commercial construction
• Your lawn is steep, unstable or particularly rough

Why Masseys recommends the Honda HRD 536 QX

Masseys recommends the HRD 536 QX to customers who want the cutting width and construction of a professional-specification Honda mower combined with a rear roller for a formal striped finish.

The cast-aluminium deck is one of the main reasons to choose this machine. It provides strong, corrosion-resistant construction for customers who mow regularly and intend to retain their mower for many years.

The fixed-speed drive also suits users who prefer a consistent mowing pace. Once the drive is engaged, the mower travels at approximately 1.2m/s, allowing the operator to focus on steering and maintaining straight mowing lines.

Roto-Stop is particularly useful on larger gardens divided by paths or separate lawn areas. The blade can be stopped while the engine remains running, reducing repeated starting when emptying the collector or crossing a non-grass surface.

The HRD 536 QX is not automatically the best Honda for every customer. Masseys would normally recommend the Honda HRX 537 HY where hydrostatic speed control and mulching flexibility matter more than a rear roller.

Customers wanting a smaller and more manoeuvrable roller mower should compare the Honda HRX 476 QY. Professional users requiring Honda’s heavier shaft-drive system should compare the Honda HRH 536 QX.

Single-speed self-propelled drive

The HRD 536 QX drives itself forward at approximately 1.2m/s while the operator controls its direction.

The fixed-speed system provides a predictable and consistent mowing pace. It is well suited to relatively open lawns that are maintained regularly.

The drive speed cannot be adjusted continuously. A hydrostatic model may be more suitable where the garden contains many obstacles, tight corners or substantial changes in mowing conditions.

The powered drive reduces the effort required to move the approximately 53.5kg mower, but the machine’s weight should still be considered when transporting, lifting or storing it.

Honda Roto-Stop blade control

Roto-Stop is Honda’s blade-brake clutch system. Releasing the blade control stops the cutting blade while allowing the engine to continue running.

This is useful when:

• Emptying the 83-litre grass collector
• Crossing paths, gravel or other non-grass surfaces
• Moving between separate lawn sections
• Pausing the cutting operation briefly

The engine must still be stopped before cleaning, inspecting, adjusting or working beneath the mower. Follow the procedures in the supplied Honda operator manual.

53cm cast-aluminium cutter deck

The 53cm / 21in cutter deck is manufactured from cast aluminium. This provides high strength, corrosion resistance and the rigidity required for demanding mowing.

The wide cutting deck reduces the number of passes required on a large lawn. It is particularly effective on relatively open areas where the mower can make long, uninterrupted runs.

The mower measures approximately 574mm across. Check gate widths, paths, storage space and transport arrangements before purchasing.

Rear roller and striped lawn finish

The rear roller bends the grass as the mower travels across the lawn. When adjacent passes are made in opposite directions, the change in the direction of the grass creates alternating light-and-dark stripes.

The roller also supports the mower when cutting close to a lawn edge, although particular care must be taken around drops, soft edges and retaining walls.

The definition of the stripes depends on the grass type, lawn condition, cutting height, mowing direction and frequency of mowing.

Honda GXV160 petrol engine

The HRD 536 QX uses Honda’s 163cc GXV160 OHV four-stroke petrol engine, rated at approximately 2.7kW at 2,800rpm.

The GXV160 includes a cast-iron cylinder sleeve and dual-element air filtration suited to demanding operating conditions.

The fuel tank holds approximately 1.5 litres, helping reduce refuelling interruptions on larger lawns. Engine-oil capacity is approximately 0.65 litres.

Fresh petrol, the correct engine oil and regular servicing are essential. Follow the supplied Honda documentation for starting, refuelling, maintenance, transportation and storage.

Five cutting heights from 14–52mm

The mower provides five cutting-height positions between approximately 14mm and 52mm.

Lower settings are intended for level, healthy and regularly maintained formal lawns in suitable growing conditions. Higher settings are useful during dry weather, periods of rapid growth or when the grass has been allowed to become longer.

Avoid removing an excessive proportion of the grass blade in one pass. When grass is long, begin with a higher setting and reduce the height gradually over later mowing sessions.

83-litre grass collector

The large 83-litre fabric grass collector complements the mower’s wide cutting deck and reduces the number of emptying stops required on a large lawn.

Collection performance depends on grass length, moisture, blade condition, cutting height and mowing pace.

Keep the collector fabric clean and unobstructed. Dried grass and dust can restrict airflow and reduce the mower’s collection performance.

The HRD 536 QX does not include a mulching system. Customers who want to alternate between collecting and mulching should compare an HRX model.

Adjustable handle and machine dimensions

The handle can be adjusted through several positions to help different operators maintain a comfortable working posture.

The approximate operating dimensions are:

• Length: 1,655mm
• Width: 574mm
• Height: 1,031mm

The mower has a dry weight of approximately 53.5kg. Suitable ramps or lifting procedures may be needed when loading it into a vehicle.

Important limitations to consider

• The mower weighs approximately 53.5kg
• It has one fixed forward speed of approximately 1.2m/s
• It does not mulch grass
• It uses recoil starting rather than electric start
• Its 53cm deck requires suitable access and storage space
• It is less manoeuvrable than a smaller 47cm mower
• It does not use the shaft-drive transmission fitted to Honda HRH models
• Regular engine, drive, blade and roller servicing remains necessary



Compare Honda lawn mowers

Read the Masseys guide to Honda HRH, HRD and HRX lawn mowers, browse the complete Honda lawn mower range, or compare other petrol lawn mowers.

Honda HRD 536 QX technical specifications

Warranty, setup and aftersales support

Honda currently advertises seven-year domestic-use and one-year professional-use warranty cover for the HRD 536 QX, subject to registration, servicing and the applicable warranty conditions.

Masseys currently assembles this mower and adds the correct engine oil and fuel free of charge. Confirm the current offer and delivery arrangements when ordering.

Ongoing support is available through the Masseys garden-machinery workshop. Learn more about lawn mower servicing and garden machinery repairs.

Masseys also supplies Aspen four-stroke alkylate petrol and other suitable mower oils and fuel products.

Frequently asked questions

Is the Honda HRD 536 QX self-propelled?

Yes. It has a single-speed self-propelled drive operating at approximately 1.2m/s.

Is the HRD 536 QX variable speed?

No. It operates at one fixed forward speed. Customers wanting hydrostatic variable speed should compare the Honda HRX 537 HY or HRH 536 HX.

What size lawn is it suitable for?

It is intended for large lawns, typically up to approximately 1,800m². Practical suitability also depends on access width, obstacles, terrain and mowing frequency.

Does the Honda HRD 536 QX create lawn stripes?

Yes. Its rear roller bends the grass in alternating directions to create a traditional striped finish.

What is Honda Roto-Stop?

Roto-Stop is a blade-brake clutch. It stops the cutting blade while allowing the engine to continue running, which is useful when emptying the collector or crossing paths.

Does the HRD 536 QX mulch grass?

No. It is designed for grass collection and does not include a mulching system.

Is the Honda HRD 536 QX a professional mower?

Honda currently markets it as a professional single-speed rear-roller mower and provides professional-use warranty cover. It also suits demanding domestic users. Contractors requiring heavier shaft-drive construction should compare Honda’s HRH range.

What is the difference between the HRD 536 QX and HRX 537 HY?

The HRD 536 QX has an aluminium deck, fixed-speed drive and rear roller for stripes. The HRX 537 HY has a Xenoy deck, hydrostatic variable speed, four wheels and variable collection and mulching.

What is the difference between the HRD 536 QX and HRH 536 QX?

Both are 53cm fixed-speed rear-roller mowers with aluminium decks and Roto-Stop. The HRH 536 QX adds heavier commercial construction and a shaft-drive system for more intensive professional use.

How heavy is the HRD 536 QX?

The dry weight is approximately 53.5kg. The powered drive reduces effort while mowing, but the weight should be considered when transporting or lifting the mower.

Can Masseys assemble and service the mower?

Yes. Masseys currently provides free assembly, oil and fuel setup and operates an in-house workshop for servicing, repairs and warranty support.

Product advice reviewed by the Masseys Garden Machinery Team.
