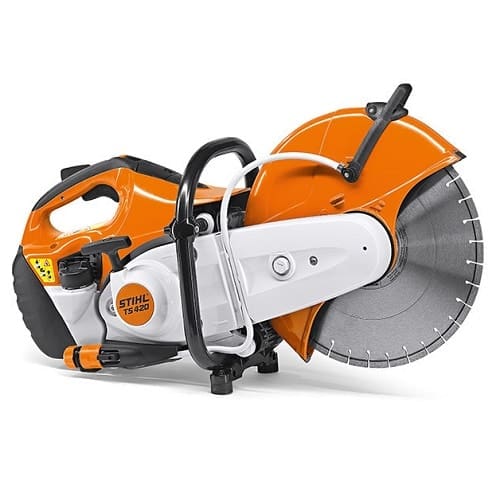

Description
The Stihl TS420 Cut Off Saw is a 350 mm / 14 inch cut off saw. It has a long-life filter system with cyclone pre-separation which thankfully makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. For use with 350mm cutting wheel. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel.
See also the Stihl TS410 Cut Off Saw and the Stihl TSA 230 .
Stihl TS 420 features
Reduced-emission engine technology
2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.
-
Manual fuel pump (Purger)
A small fuel pump delivers fuel to the carburettor at the touch of a button on the Stihl TS420. This reduces the number of starting strokes required following extended breaks in operations.
-
Water supply
Water is supplied to the cutting wheel through the standard water connection with sprinkler system to suppress the dust produced during cutting. It is supplied to the device in such a way so as not to interfere with your work.
-
Pre-separation air filtration system
STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems. Air drawn in is swirled. The larger, heavier particles are ejected. The pre-cleaned air is routed to the air filter via the pre-separator duct.
-
Anti-vibration system
Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system on the Stihl TS420 Cut Off Saw whereby the oscillations from the machine’s engine are dampened which significantly reduces vibrations at the handles.
-
Ergonomic grip position
The modern, ergonomic design on the Stihl TS420 allows each user to work with an optimal grip position. The loop handle facilitates excellent cutting comfort in any working position.
-
Semi automatic drive belt tensioning
Light, consistent re-tensioning increases the service life of the belts and shaft bearings.
Stihl TS420 Technical data
| CO2 g/kWh | 747 |
| Capacity cm3 | 66.7 |
| Performance kW | 3.2 |
| Vibration value, right m/s2 1) | 3.9 |
| Sound pressure level dB(A) 2) | 98 |
| Sound power level dB(A) 2) | 109 |
| Vibration value, left m/s2 1) | 3.9 |
| Tank volume l | 0.71 |
| Sound pressure level dB(A) 3) | 98.0 |
| Sound power level dB(A) 3) | 109.0 |
| Vibration levels left/right m/s² 4) | 3.9/3.9 |
| Cutting wheel mm/in | 350 / 14 |
1) K-factor according to DIR 2006/42/EC = 2m / s ²
2) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3) Power factor according to DIR2006/42/EC=2.5(dB(A))
4) (K) factor according to Dir. 2006/42/EC = 2m/s²
For more information about the Stihl TS420 Cut Off Saw then please visit https://www.stihl.co.uk/en/
